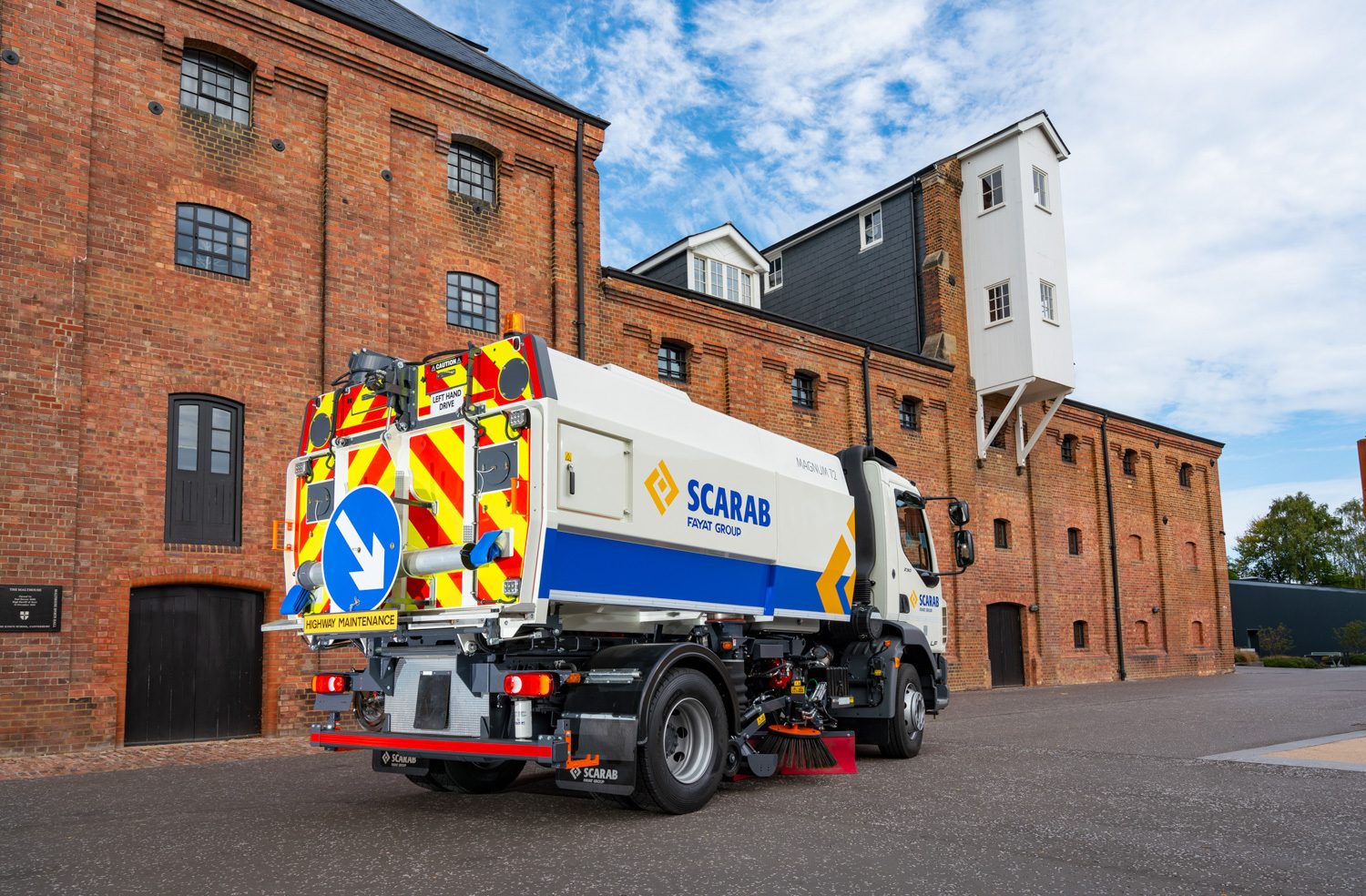

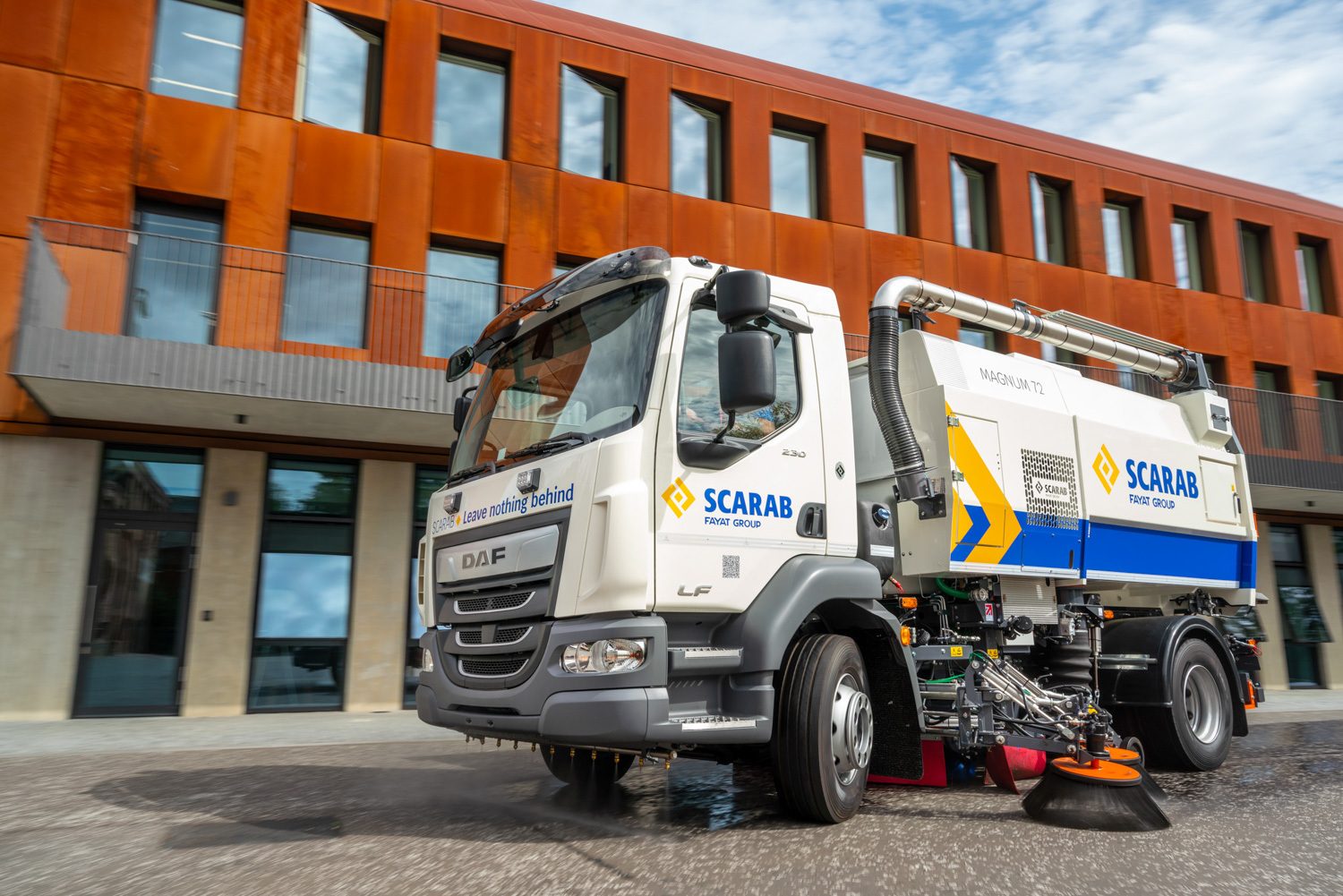

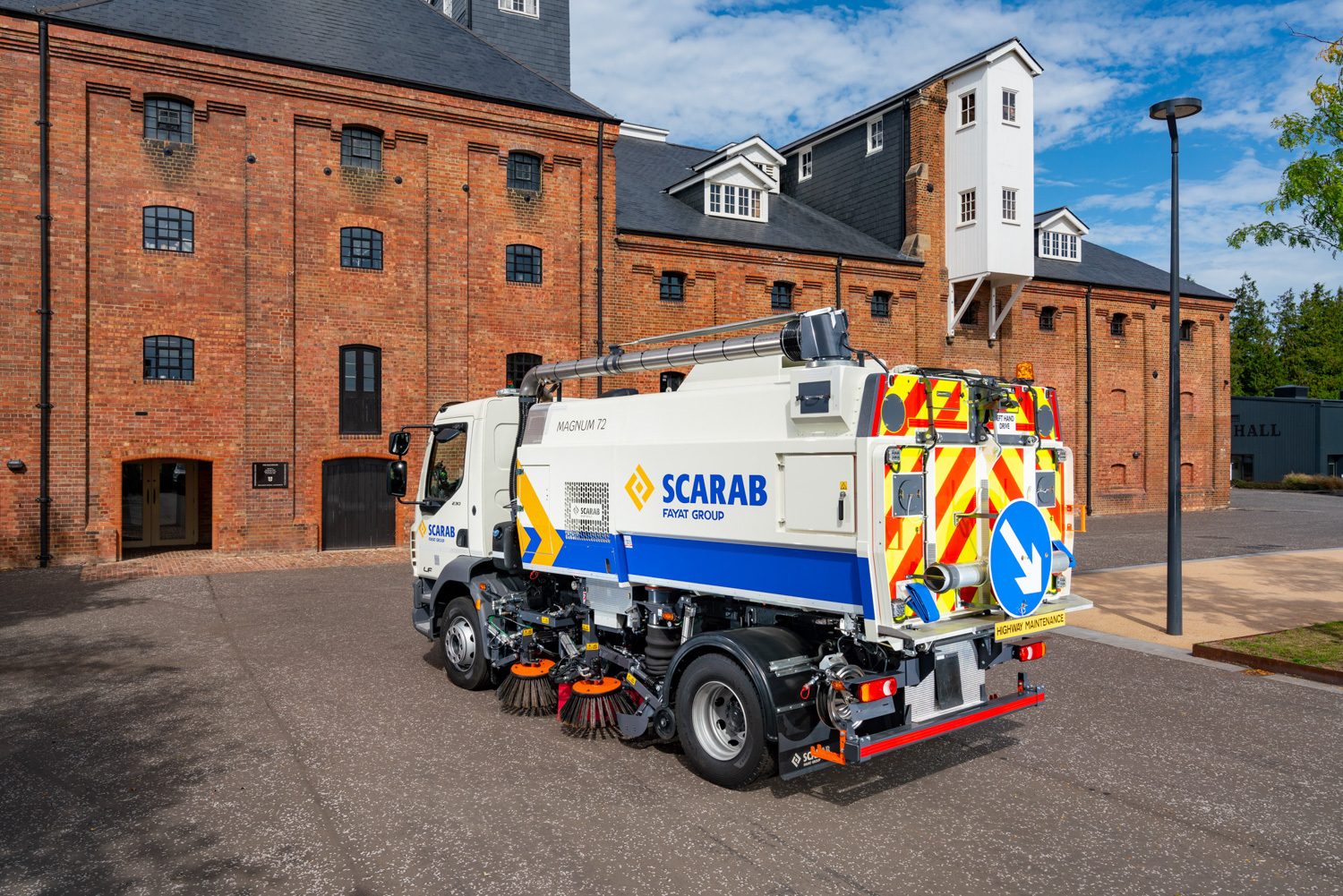

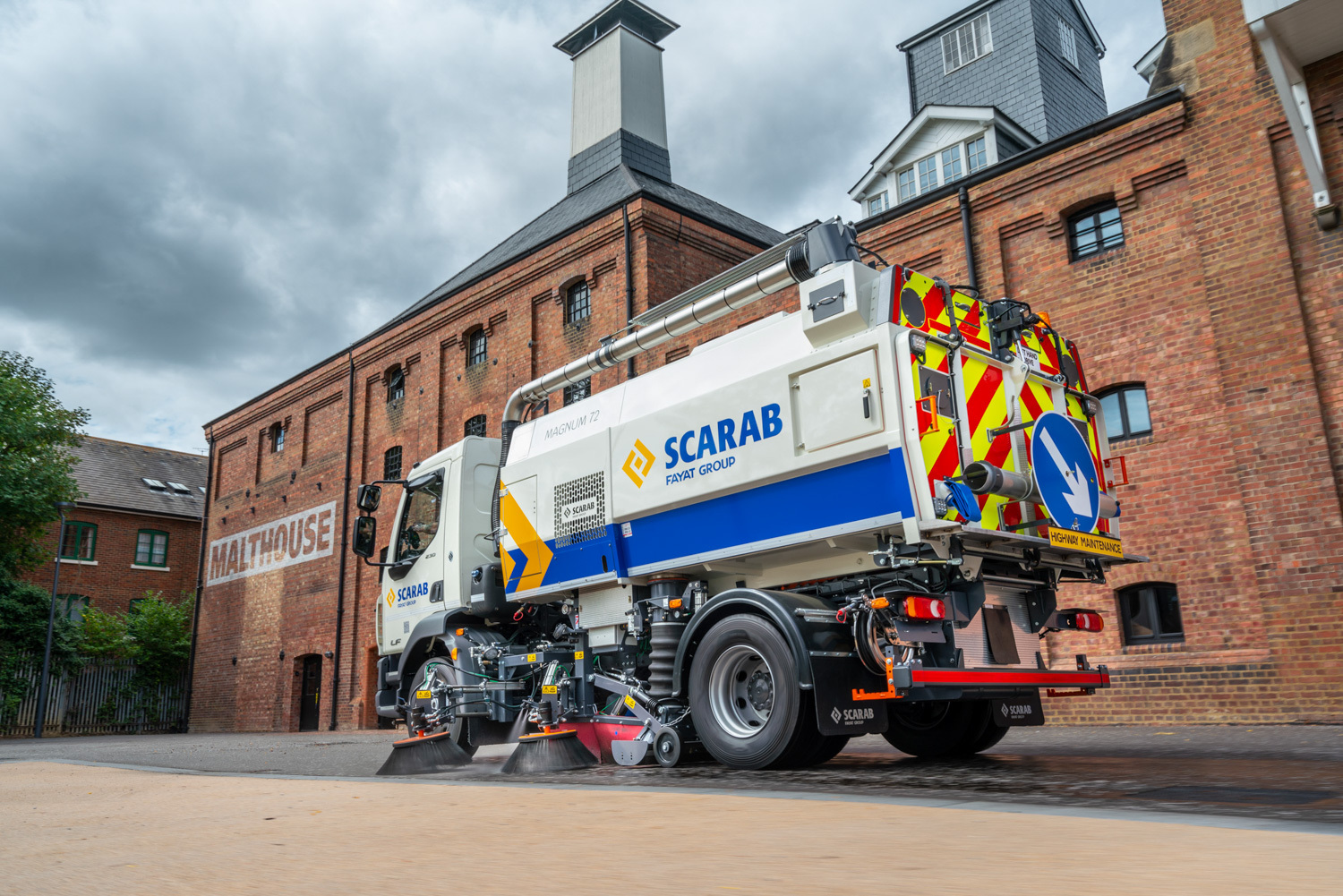

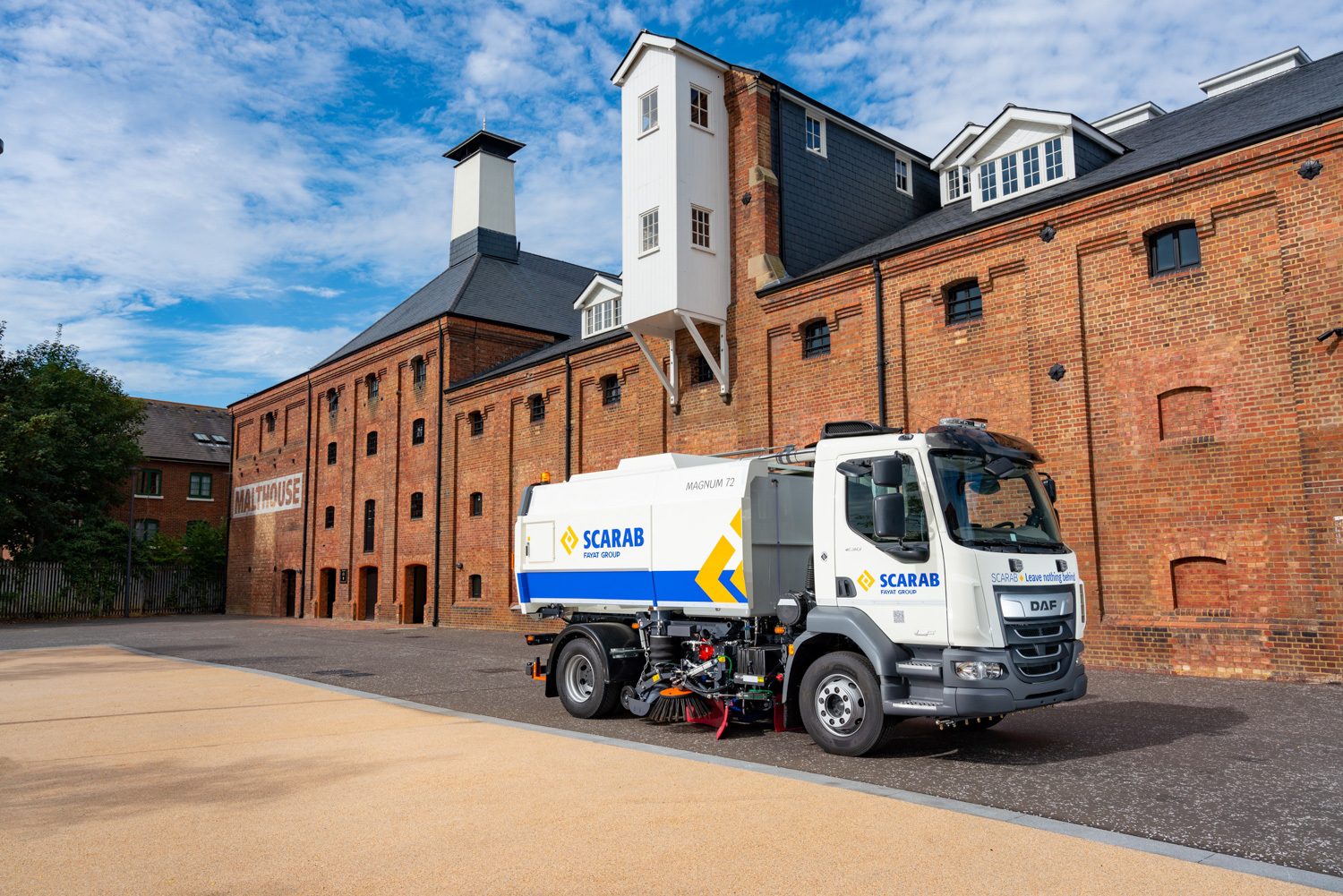

Magnum 72

Big on capacity, big on performance - heavy-duty road sweeping from 15-18 tonne GVW.

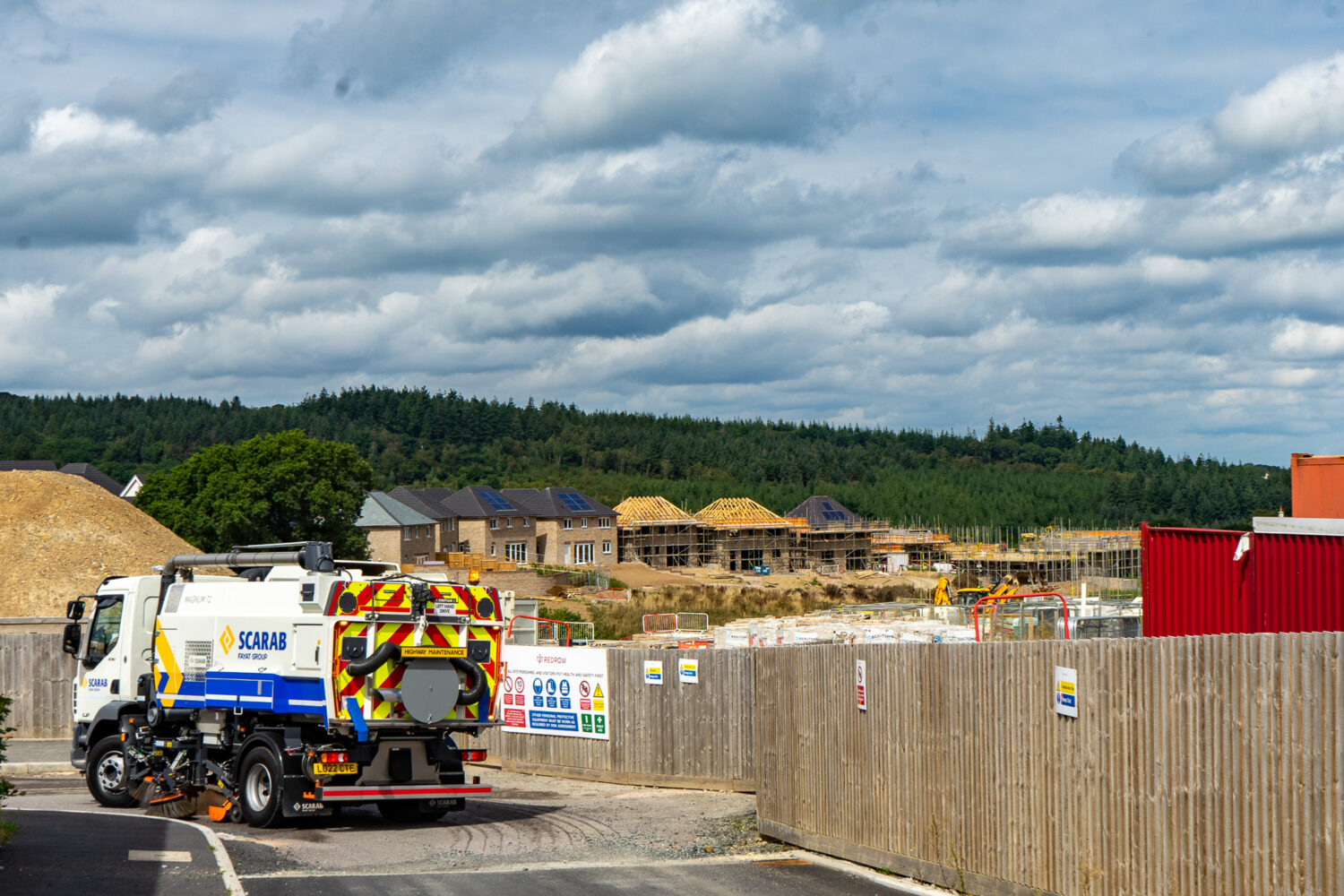

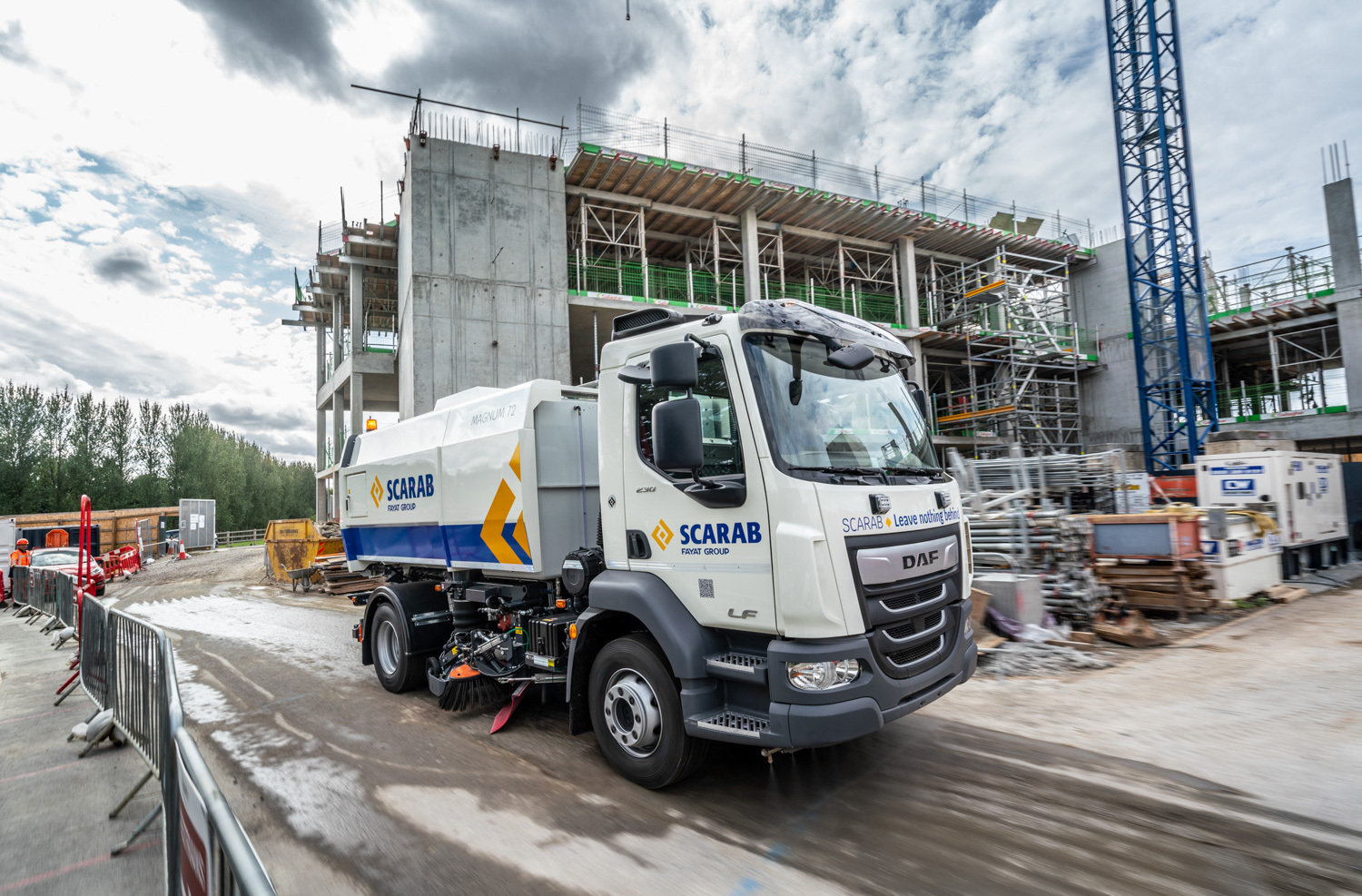

The Magnum 72 has been designed for mounting on a truck chassis in the range of 15-18 tonne GVW and is capable of delivering powerful cleansing results in municipal, construction and road maintenance settings. Available in both Hydrostatic and Unidrive configurations, with a 7.2 cubic metre hopper giving a potential payload capacity of up to 9000kg and a water capacity ranging from 1800-2500 litres, the Magnum 72 is the optimum road sweeper for any operator looking to work harder, for longer.

For the most demanding of heavy-duty applications, Scarab's optional high-speed fan solution takes the Magnum 72's performance to the next level.

Single engine, single emission, no compromise

Single engine, single emission, no compromise

Scarab can justifiably claim to be the pioneer of the truck-mounted sweeper powered from a single-engine.

Operating the whole machine from the engine of the truck chassis provides many advantages, including reduced fuel consumption, decreased noise and engine pollution, less weight, greater payload and reduced maintenance.

Flexible, truck-mounted solutions

Flexible, truck-mounted solutions

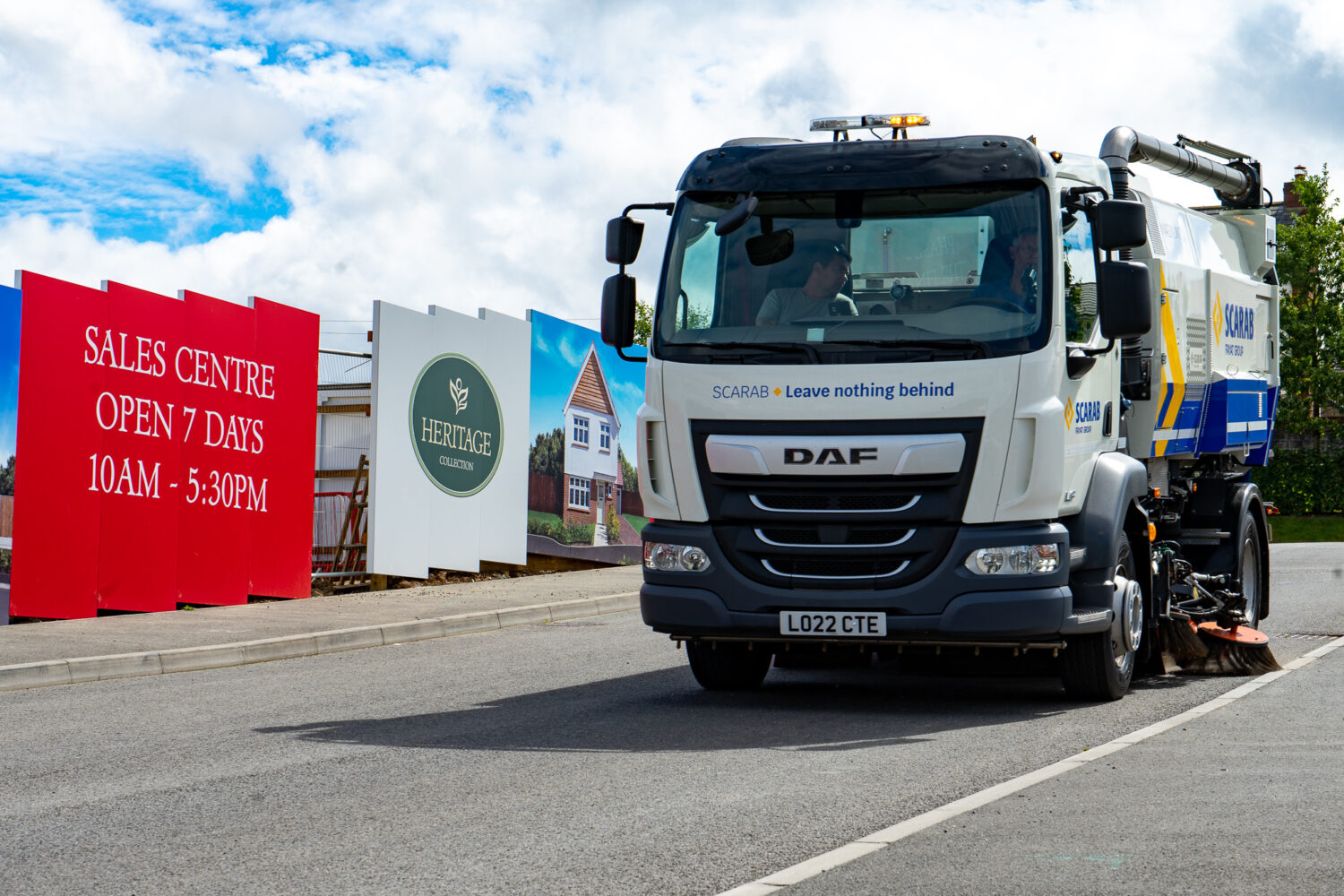

The Magnum 72 is just one of Scarab's expertly engineered truck-mounted road sweeping solutions. Because of this flexibility, the Magnum 72 can be fitted to a wide choice of chassis including those from DAF, Iveco, MAN, Mercedes, Volvo, Renault, Freightliner and more

For details on suitable chassis specifications, please contact your local distributor by visiting our Dealer Network.

Drive Configuration

Suction Performance

Sweeping Capabilities

Hopper

CANbus Control System

After Sales Support

Hydrostatic System:

The Scarab designed hydrostatic gearbox is installed in the chassis driveline and allows the sweeping components to be powered directly from the chassis engine. As well bringing a range of benefits such as reduced weight, increased payload, reduced fuel consumption and lower emissions, it also offers a range of operator benefits with its simple joystick control for Forward and Reverse, allowing single-pedal control which reduces fatigue and enables the driver to fully concentrate on sweeping.

Unidrive Solution (Chassis Dependant):

Our Unidrive solution uses a Power Take-Off (PTO) fitted to the truck engine to power sweeping functions. The Merlin 55 control system manages engine speed to ensure optimum sweeping performance.

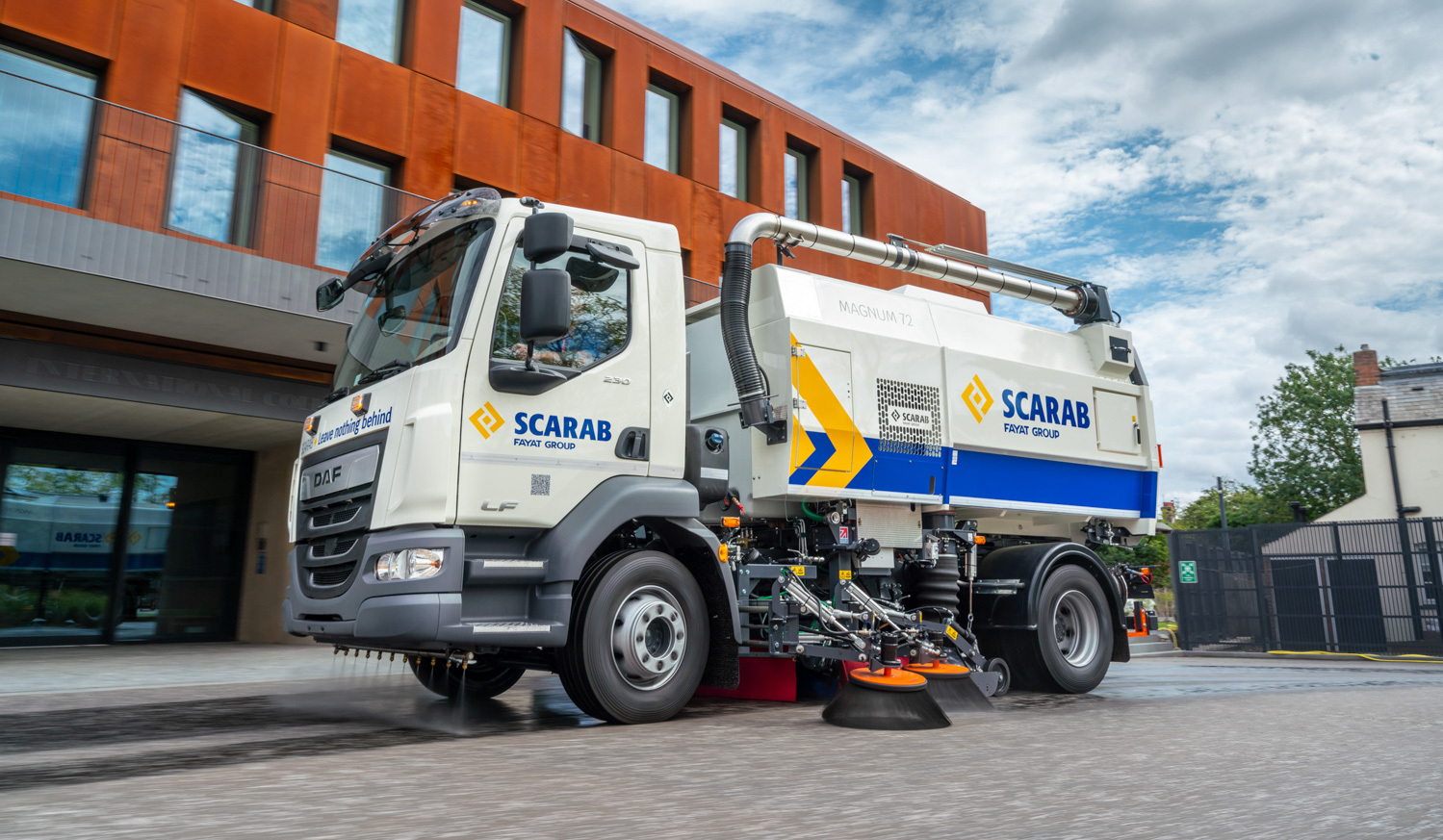

Powerful & Reliable Suction Performance

A Stainless Steel 905.5mm roof-mounted impellor positioned to produce an efficient airflow path for high suction performance and reduced power consumption. Particulate screening via a hinged, stainless steel mesh filter is pleated to give maximum surface area and reduce blocking - it also swings down for ease of cleaning.

Scarab's high-speed fan option can take the Magnum 72 to the next level of sweeping performance.

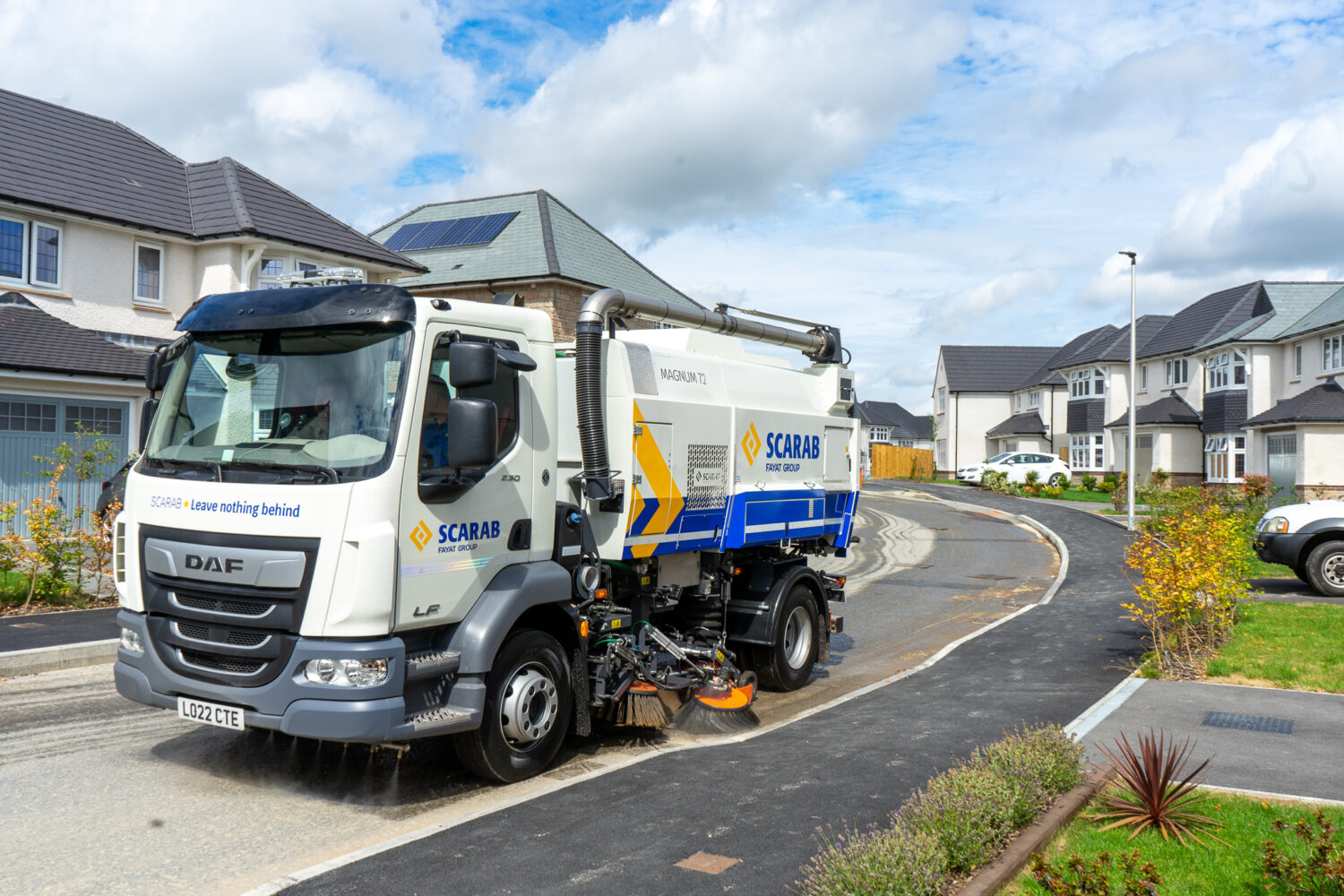

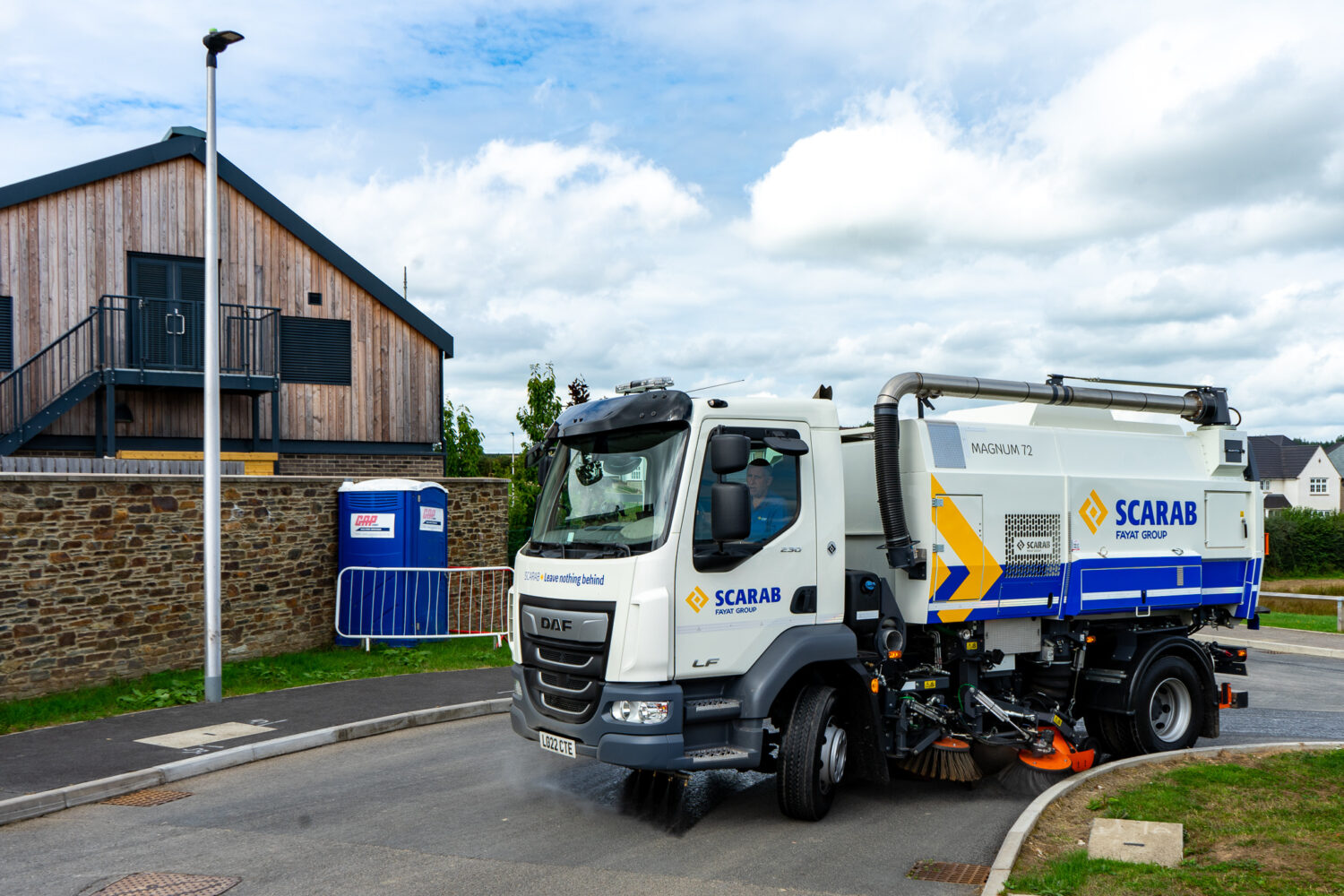

Extensive Sweeping Capabilities

M25 Sweeping

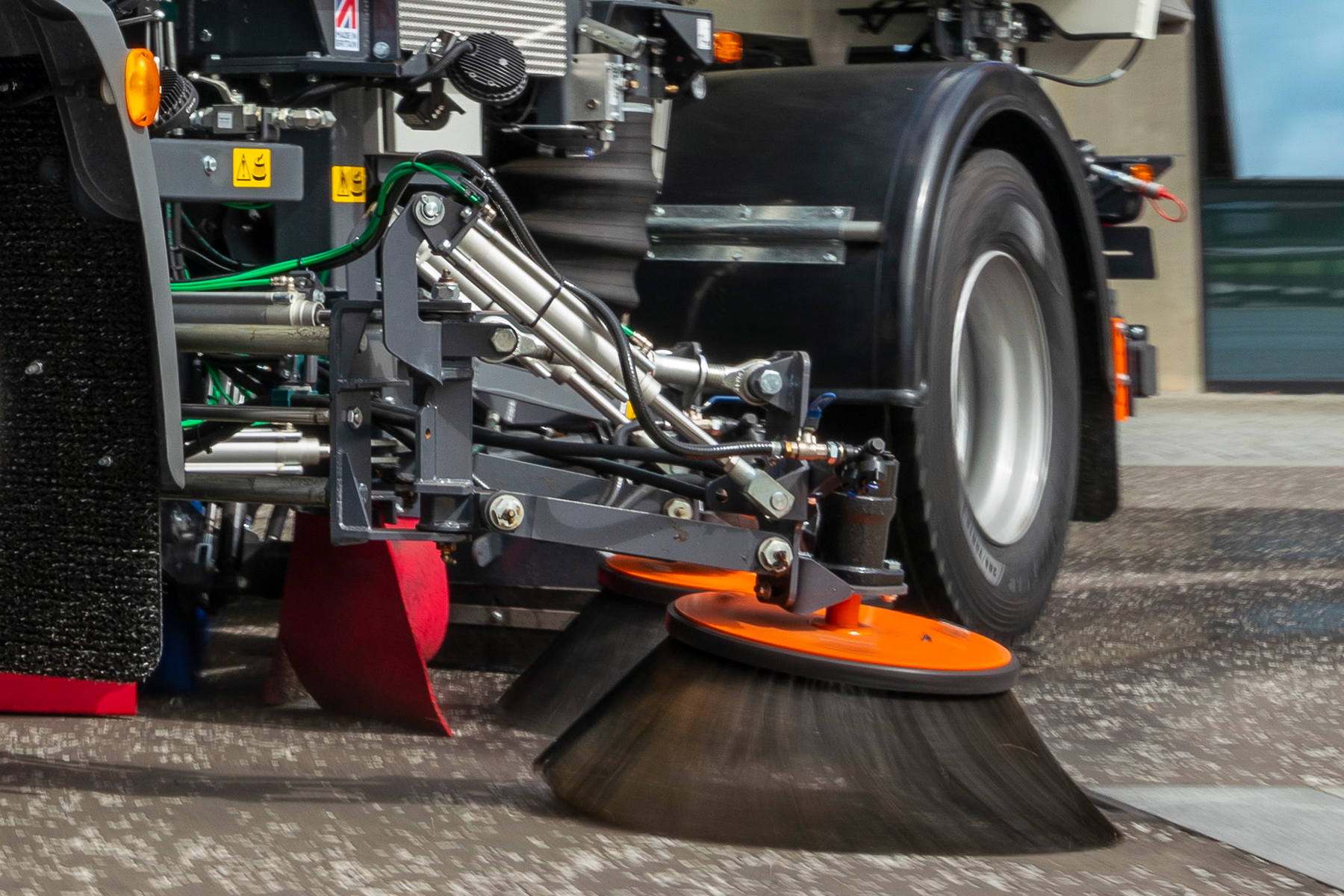

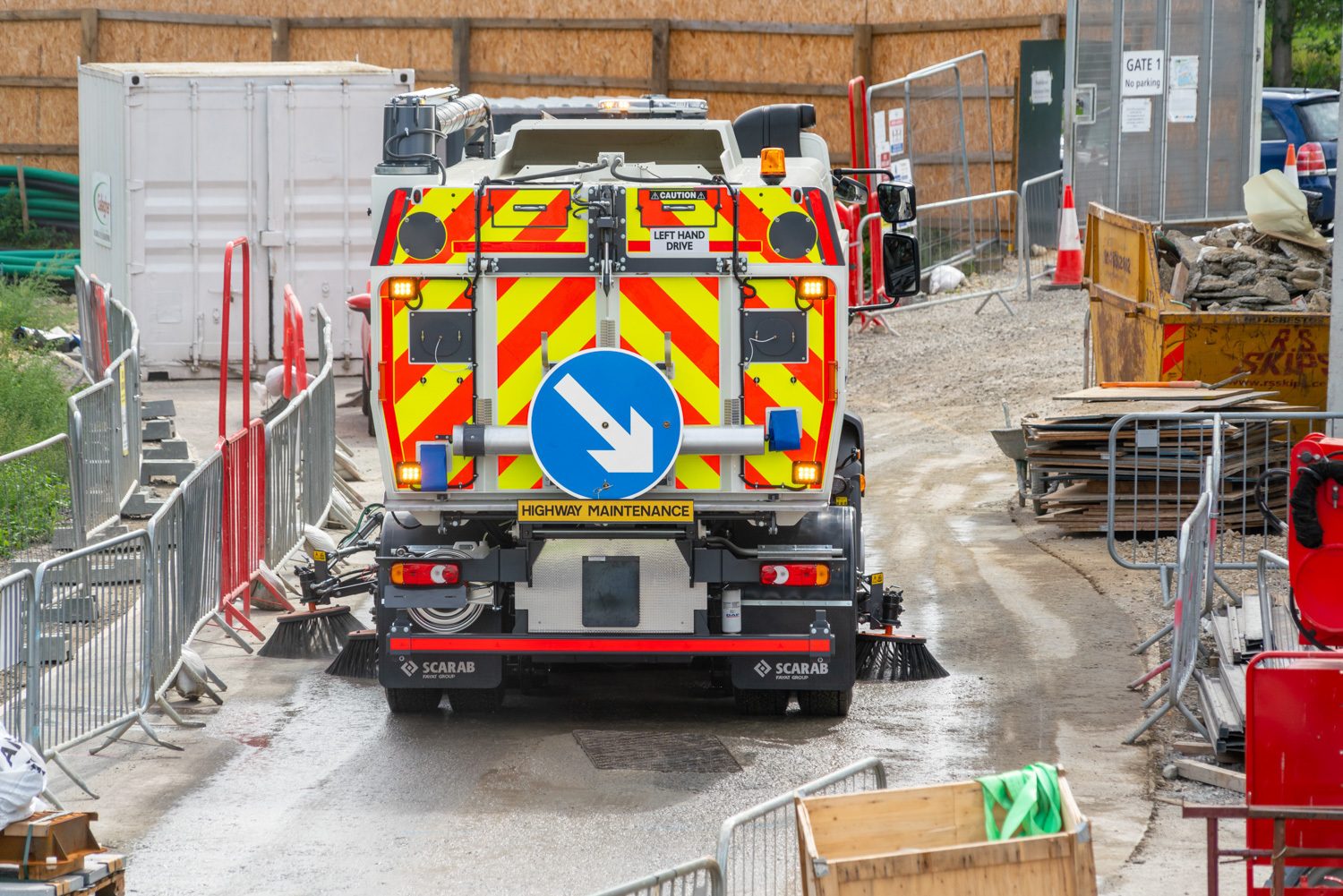

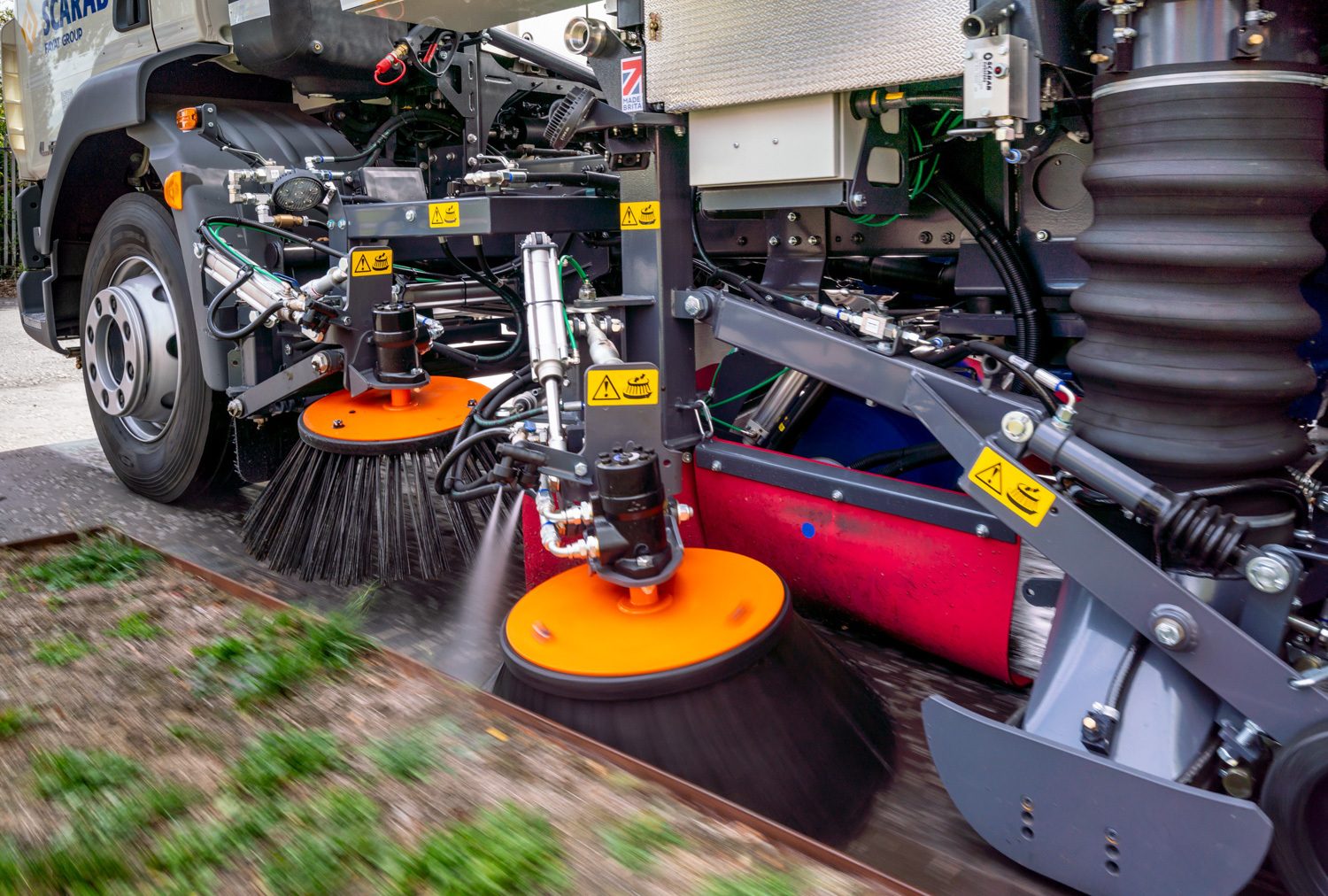

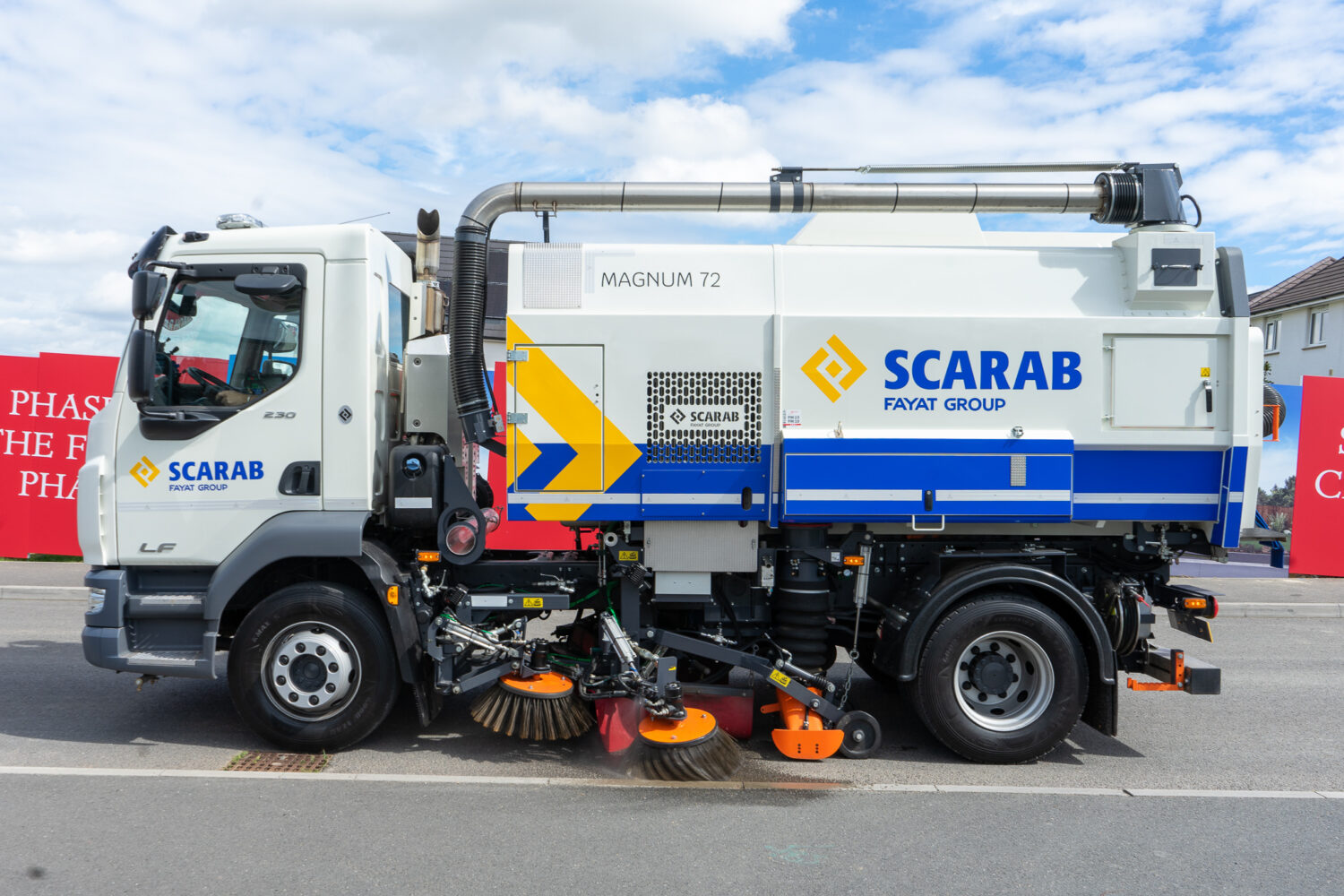

The Magnum 72 is available in both single and optional dual sweep configuration. When the suction nozzle, side brush and widesweep functions are in operation the Magnum 72 can sweep at a 2365mm width. However, the brushes can reach an impressive 3200mm span when simultaneously dual sweeping.

With variable brush speeds, optional down pressure and swivelling widesweep, the Magnum 72 is proficient in any sweeping application.

Strong, Robust Hopper

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 Stainless Steel, which is shot blasted before a two-pack epoxy primer is applied followed by a hard-wearing topcoat.

Particulate screening via a hinged stainless-steel mesh filter – swings down for ease of cleaning and access to the stainless-steel inlet cone.

Total, Intuitive Control

CANbus Control

The CANbus control system has revolutionised the way Scarab sweepers are operated and maintained. Intuitive controls and a colour monitor provide comprehensive feedback to both the driver and service team.

The clear display indicates the sweeping configuration, vehicle condition and highlights both warnings and service reminders. Our real-time monitoring and data-logging provide valuable assistance in troubleshooting technical problems and helps keep your machine running at its most efficient.

Market Leading After Sales Support

As well as supplying market-leading sweeping solutions around the world, Scarab is proud to offer comprehensive After Sales support to clients.

We offer a range of tailored Service and Maintenance contracts to our clients to ensure that their Scarab machines are able to keep working at optimum performance, for longer.

What's more, thanks to our dedicated parts warehouse, Scarab ensures genuine parts are always in stock and can ship its trusted components to clients around the world.

Find out more >

Magnum 72 Options

The Magnum 72 comes with a variety of options to help any operator meet the demands of their operation.

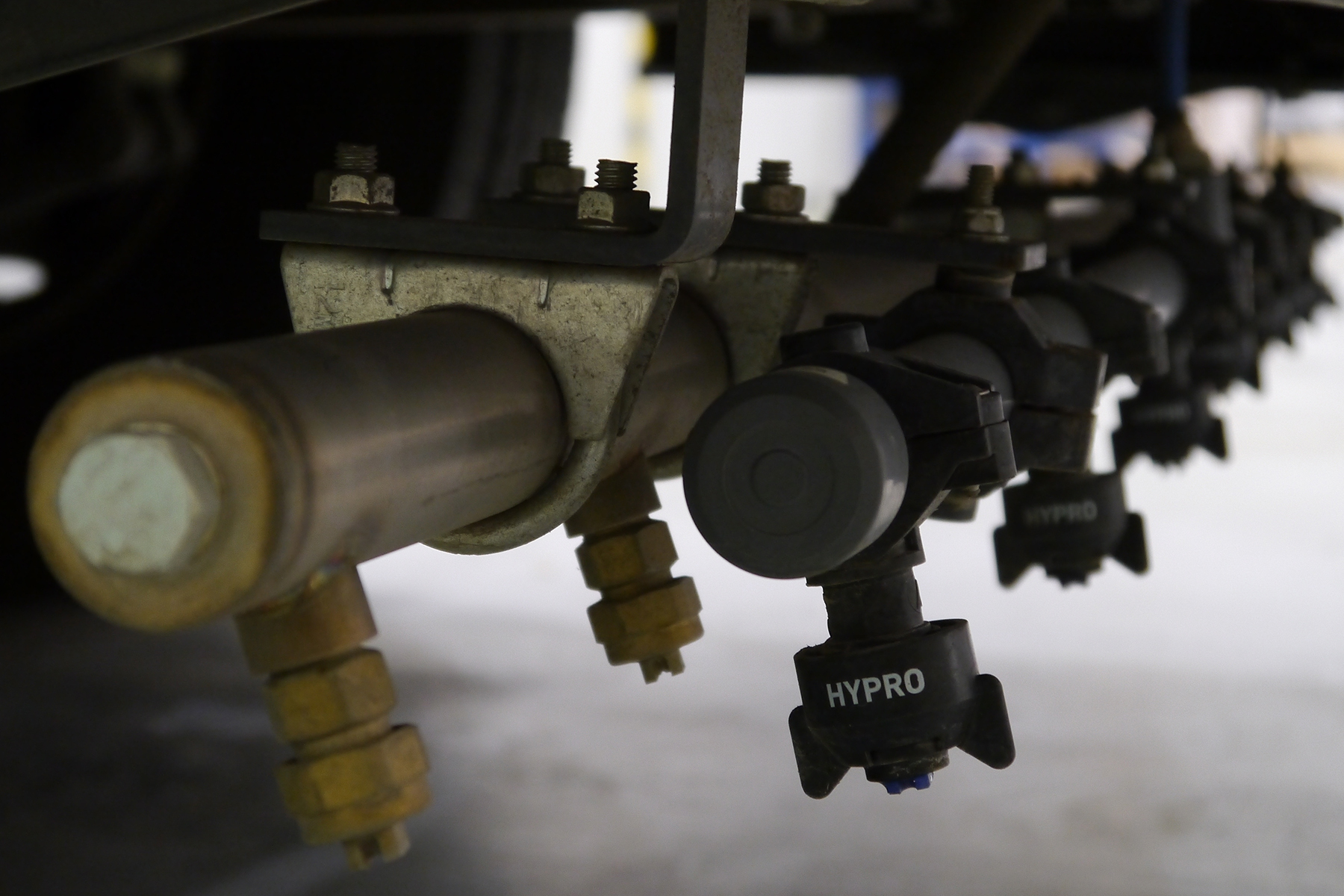

High Pressure Water

Auxillary Channel Brush

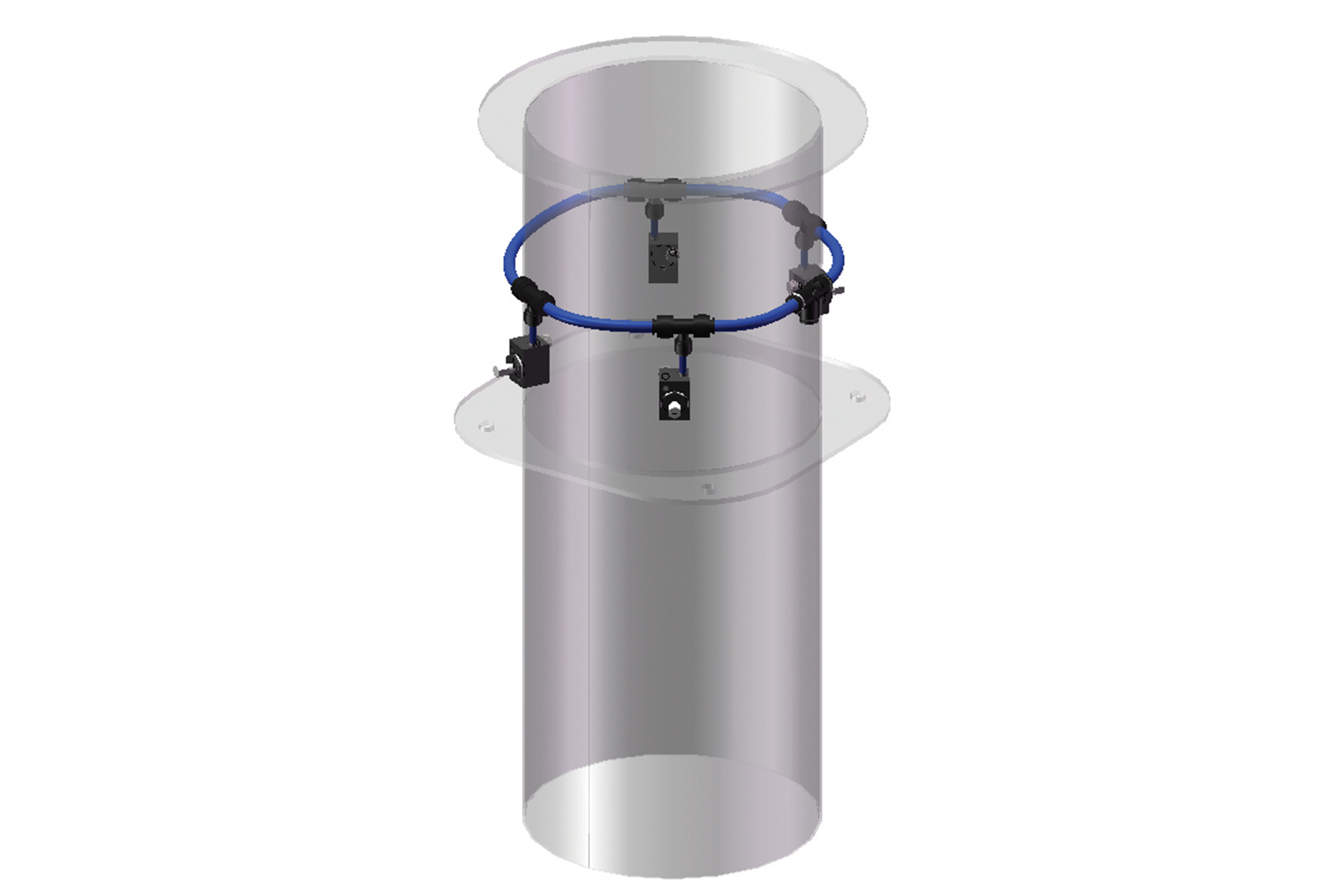

Suction Tube Dust Suppression

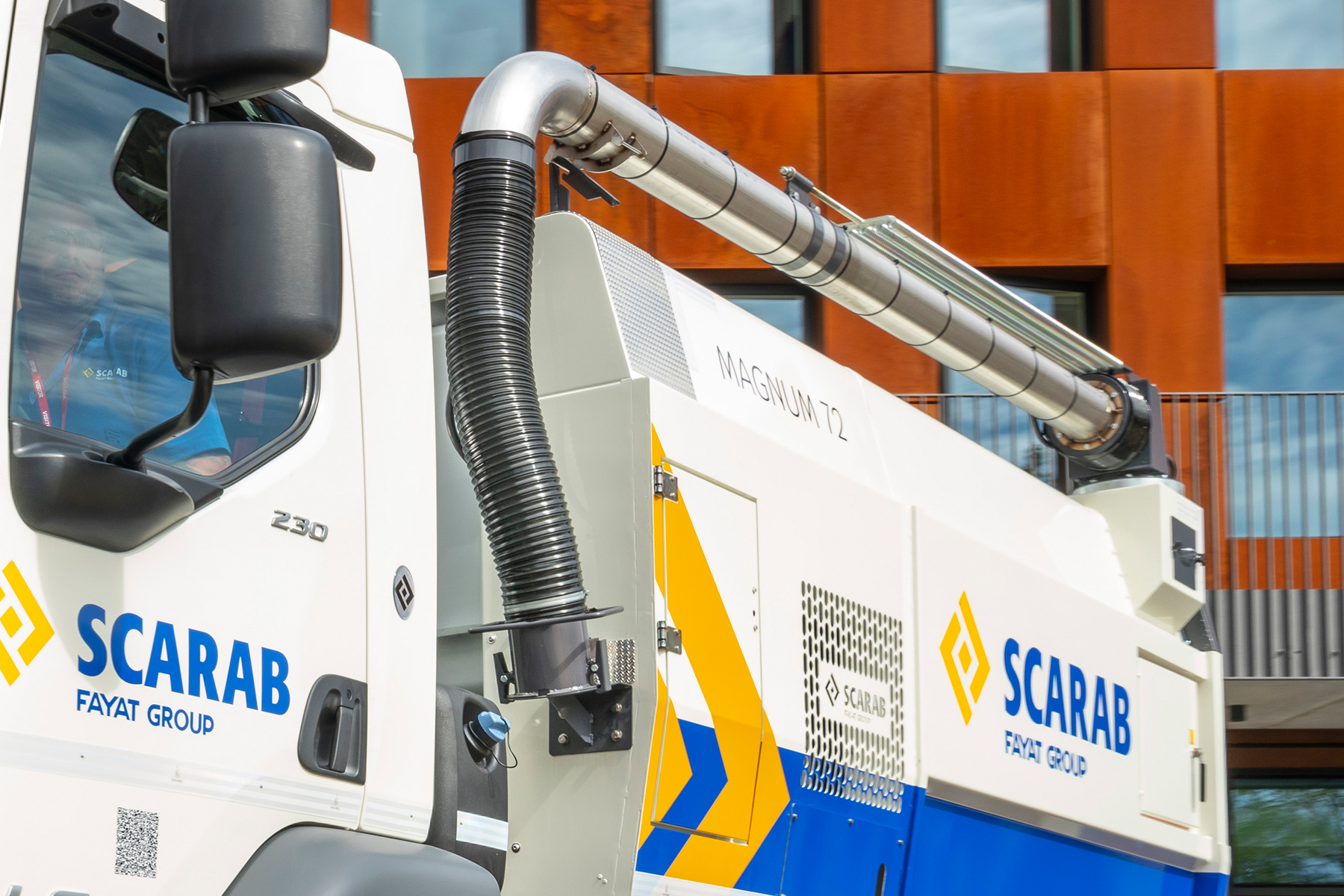

Overhead Wander Boom

Water

Brushes

Suction

Miscellaneous

Additional options and operator-specific requirements are available by request.
Please note, some options are chassis dependant.
