Maven 65

Whatever the application, wherever the location - the Maven 65 is the most competent
6.5 cubic metre twin-engine sweeper on the market.

New to the Scarab range in 2021, the Maven 65 is a heavy-duty twin-engine sweeper capable of being mounted onto virtually any internationally available 12 to 18 tonne GVW truck chassis. Incorporating all the benefits associated with Scarab equipment, the powerful performance and a carefully selected range of options available with this machine ensure it can meet the demands of all municipal and heavy-duty contractor applications.

THE NEXT LEVEL OF SWEEPING PERFORMANCE
Guided by extensive customer feedback, the Maven 65 replaces the outgoing M65T as Scarab's leading twin-engine solution. The Maven 65 was developed to offer significant improvements across the machine including, 20% improved suction performance via the standard inclusion of Scarab's High-Speed Fan system, increased fuel capacity to 200 litres allowing longer on-station time, reduced fuel consumption by 20%, and a range of enhanced operation and maintenance features.

Twin Drive Configuration

Twin Drive Configuration

The Maven 65 has been designed for operators who prefer a twin-engine configuration but who also wish to benefit from the very best in road sweeper technology.

All the qualities that make Scarab the street sweeper of choice for so many operators are incorporated in the Maven 65.

The new Maven 65, with its combination of a powerful, yet economical Stage V Duetz engine, streamlined airflow path and efficent High-Speed Fan configuration has lead to a 20% overall reduction in fuel consumption.

MADE IN BRITAIN, TRUSTED WORLDWIDE

MADE IN BRITAIN, TRUSTED WORLDWIDE

The Maven 65 can be supplied as a completely built machine from the factory or for specific markets can be supplied as an Export Skid Unit for local mounting in the country of destination.

Our export skid units allow for a twin-drive configuration which provides a familiar transmission and power-delivery system for users whose operational needs call for auxiliary engine power while being able to rely on Scarab’s renowned sweeping performance.

What’s more, the flexibility of our skid units provides customers with the ability to combine different chassis, hoppers and water tanks to offer optimum customisation to meet specific demands.

Drive Configuration

Suction Performance

Sweeping Configuration

Hopper

CANbus Control System

After Sales Support

Quiet, Efficient Power in a Self-Contained Unit

The Maven 65 has been designed for operators who prefer a twin-engine configuration but who also wish to benefit from the very best in road sweeper technology.

The quiet, low-emission engine was selected for its ability to provide ample power at low rpm, with reduced fuel consumption and industry-leading service intervals and without the need for AdBlue. Its position, between hopper and cab, affords ease of access for servicing. All engine filters and main service points can be reached from the large service platform.

The simple fluid power system and Scarab’s industry-leading CANbus control reduce ownership costs and maximise reliability.

Powerful & Reliable Suction Performance

A stainless-steel centrifugal impellor positioned to produce an efficient airflow path for high suction performance and reduced power consumption.

The auxiliary engine is infinitely variable from 1200 RPM - 1550 RPM this provides more than enough power for municipal or heavy-duty work whilst a 1700 RPM fan boost is available for resurfacing and tougher environments ensuring a clean sweep every time.

Improving air quality is a daily challenge for many municipalities. The use of sweepers to reduce dust particulates in public areas is a common practice.

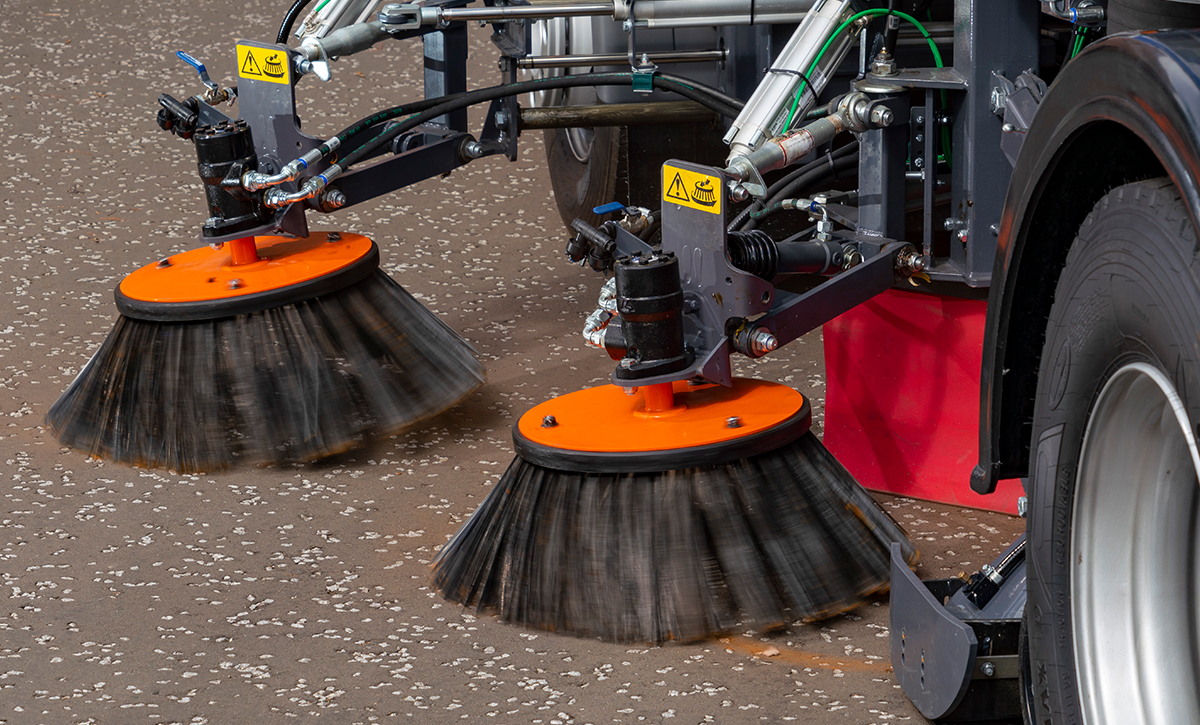

Extensive Sweeping Configuration

Maven Sweeping Configuration

The Maven 65 is able to easily switch between single and dual sweeping functions thanks to the intuitive CANbus control system fitted to every Scarab machine. When the suction nozzle, side brush and widesweep functions are in operation the Maven 65 can sweep at a 2345mm width. However, the brushes can reach an impressive 3600mm span when simultaneously dual sweeping.

With a tilting brush design, variable brush speeds, optional down pressure and swivelling widesweep, the Maven 65 is proficient in any sweeping application.

Strong, Robust Hopper

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 stainless steel, shot blasted with chrome before a two-pack epoxy primer is applied followed by a hard-wearing topcoat.

The hopper is fitted with lockers on both sides for additional storage. Particulate screening via a hinged stainless-steel mesh filter – swings down for ease of cleaning and access to the stainless-steel inlet cone.

Total, Intuitive Control

CANbus Control

The CANbus control system has revolutionised the way Scarab sweepers are operated and maintained. Intuitive controls and a colour monitor provide comprehensive feedback to both the driver and service team.

The clear display indicates the sweeping configuration, vehicle condition and highlights both warnings and service reminders. Our real-time monitoring and data-logging provide valuable assistance in troubleshooting technical problems and helps keep your machine running at its most efficient.

Market Leading After Sales Support

As well as supplying market-leading sweeping solutions around the world, Scarab is proud to offer comprehensive After Sales support to clients.

We offer a range of tailored Service and Maintenance contracts to our clients to ensure that their Scarab machines are able to keep working at optimum performance, for longer.

What's more, thanks to our dedicated parts warehouse, Scarab ensures genuine parts are always in stock and can ship its trusted components to clients around the world.

Find out more >

Maven 65 Options

The Maven 65 comes with a variety of options to help any operator meet the demands of their operation.

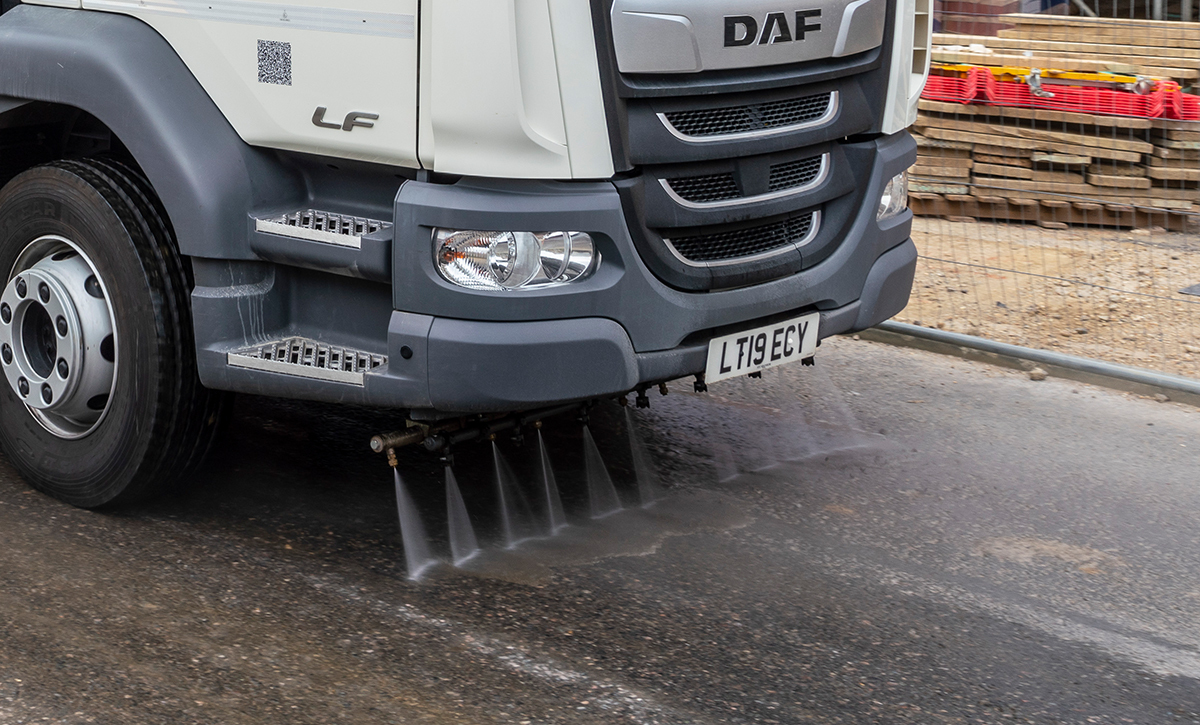

High Pressure Water

Auxiliary Channel Brush

Overhead Boom

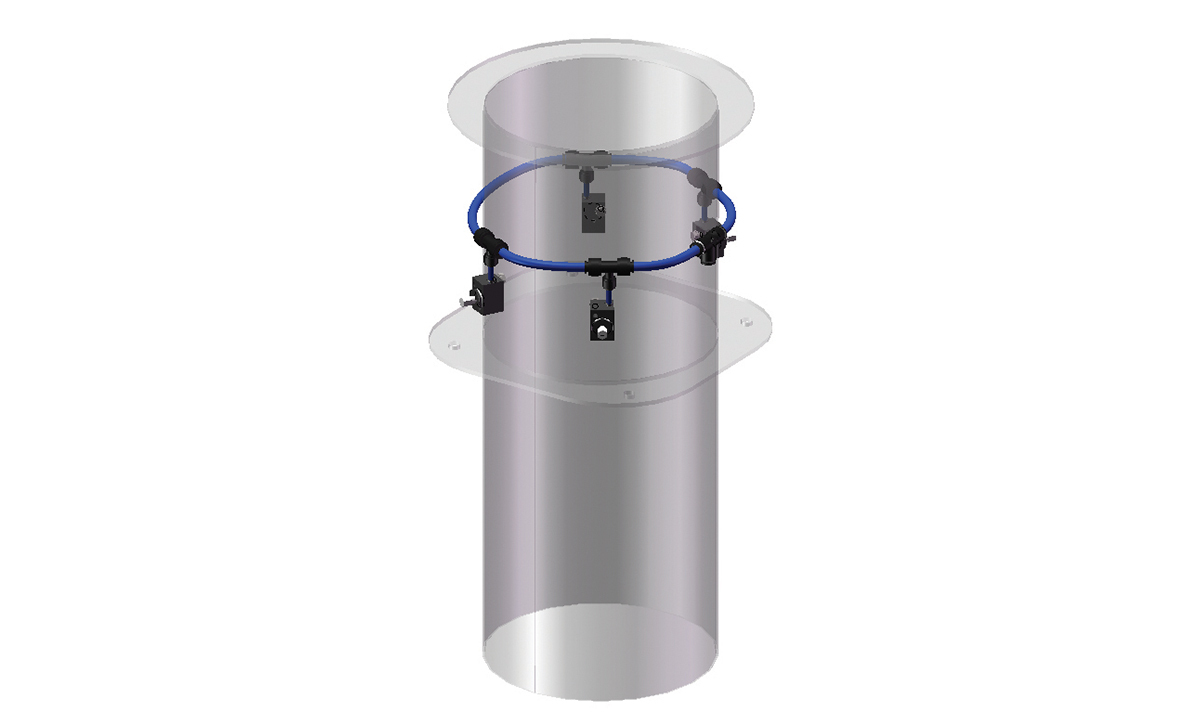

Suction Tube Dust Suppression

Water

Brushes

Suction System

Miscellaneous

Additional options and operator-specific requirements are available by request.
Please note, some options are chassis dependant.

Maven 65 downloads

Vehicle

Maven 65

File type

PDF

Size

9.252 MB

Vehicle

Maven 65

File type

PDF

Size

693.525 KB
Contact us for more information about the Maven 65
