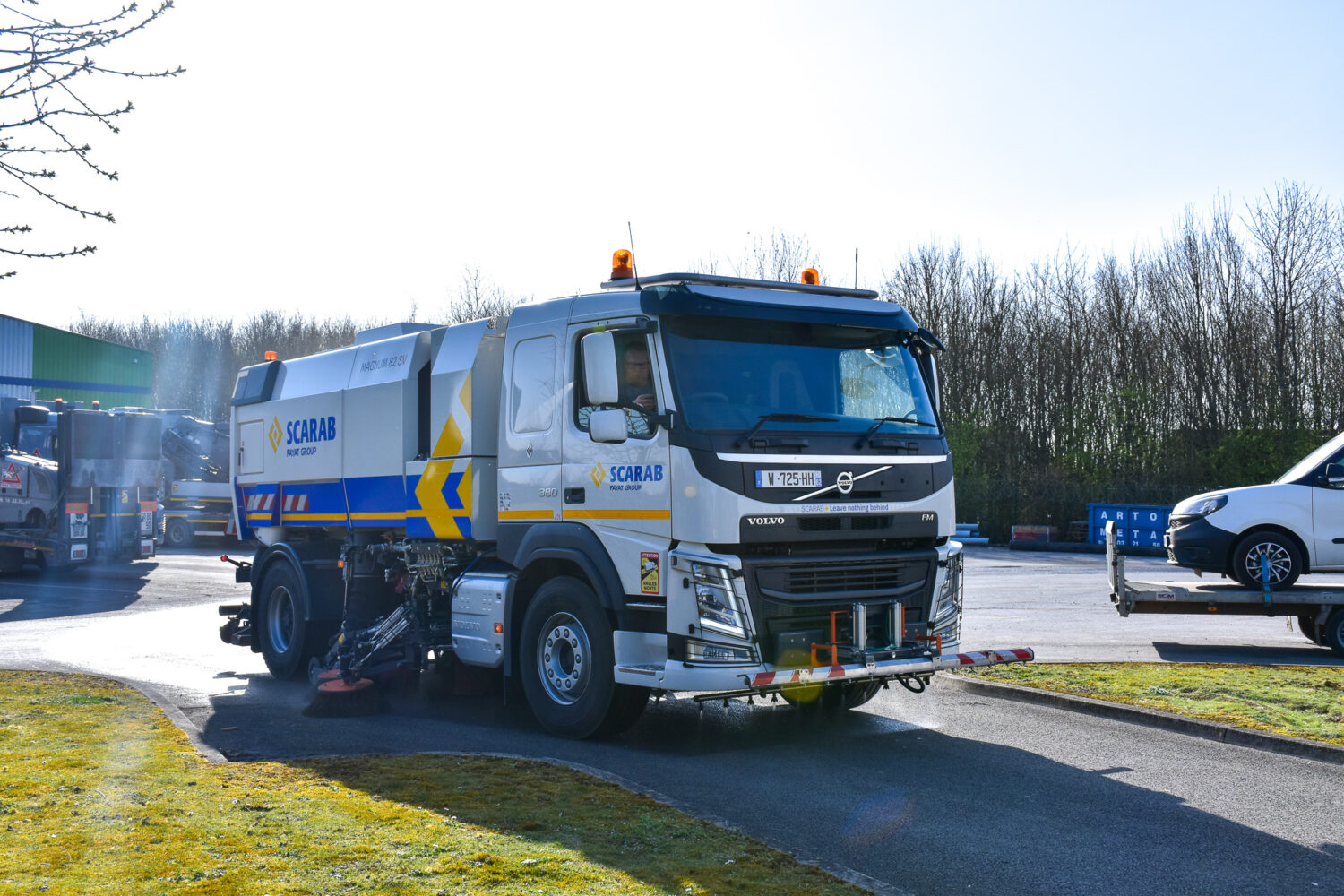

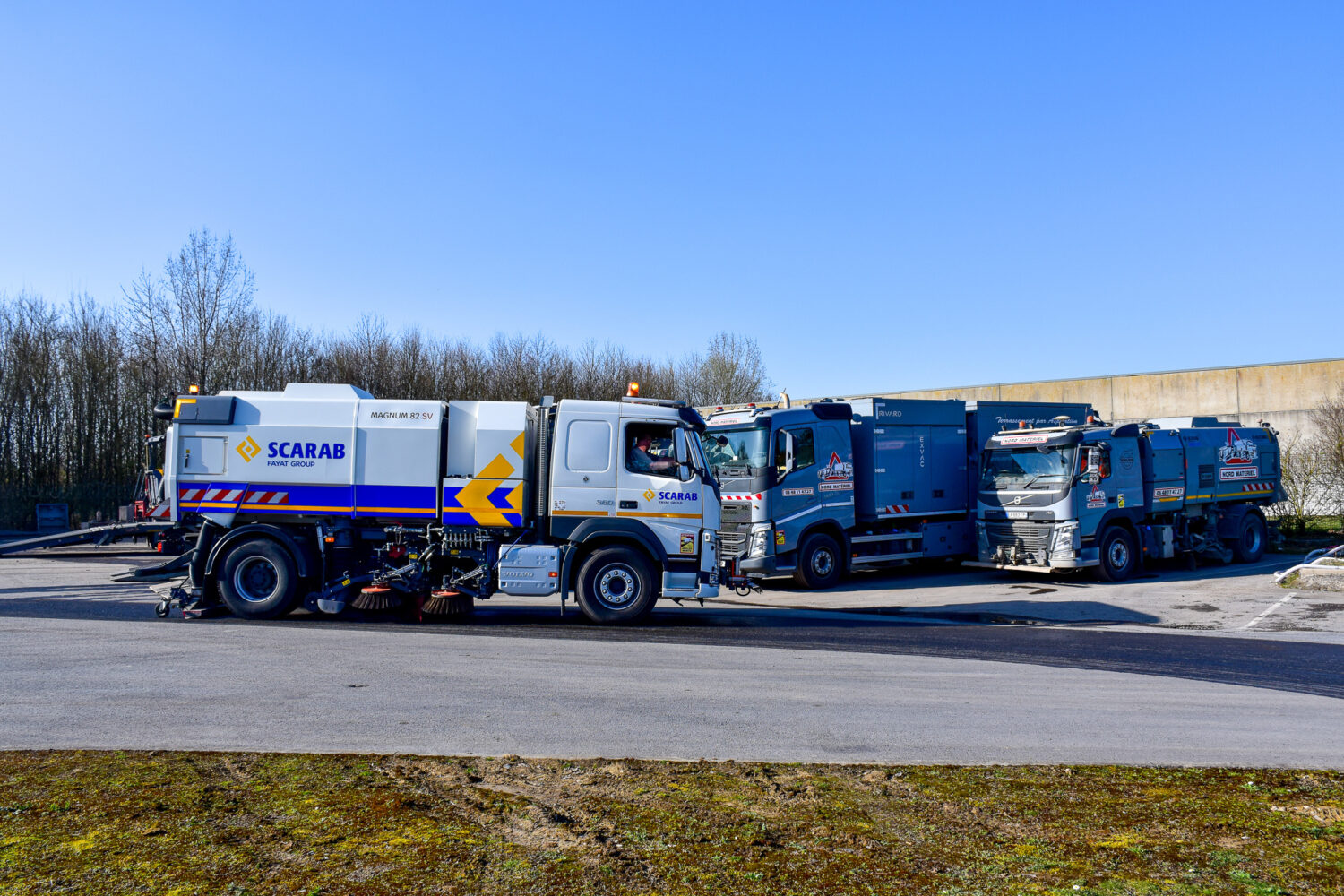

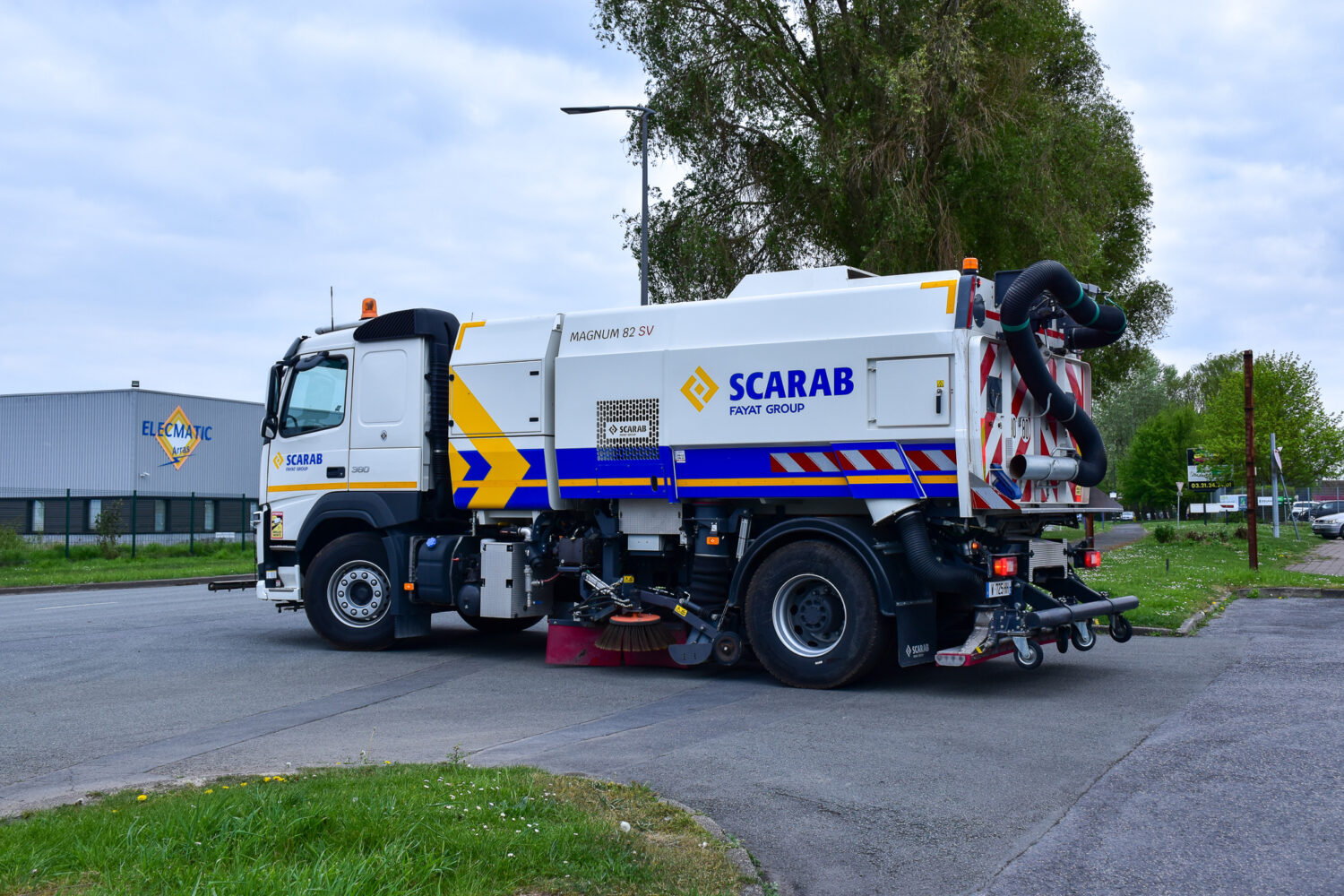

Magnum 82 SV

The Ultimate Specialist Sweeping Solution

Scarabā€™s Specialist Vehicle (SV) option range, available on our flagship Magnum 82, combine to deliver the pinnacle of sweeping performance. The Magnum 82 can be fitted with a number of additional SV Options to meet the demands of heavy-duty, specialist cleansing applications. This comprehensive range of options - which includes a Fully Articulating Spray Bar, Full-Width Rear Suction, Side Jets, High-Pressure Water Pump, Next Generation Control System and Hopper Wash - has been expertly engineered to help customers discover the apex of performance.

The SV Option Range is currently available to customers looking for a right-hand drive vehicle.

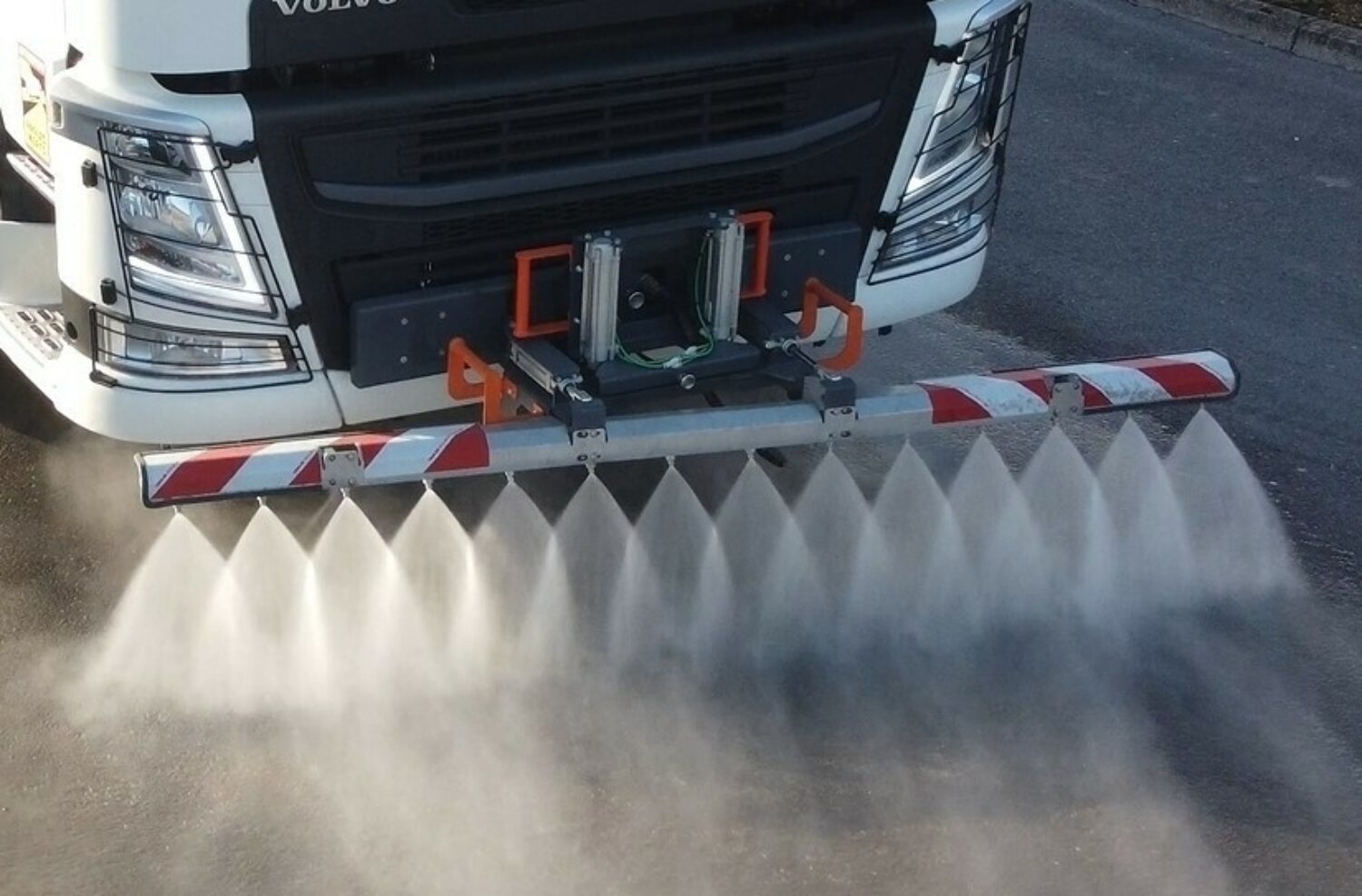

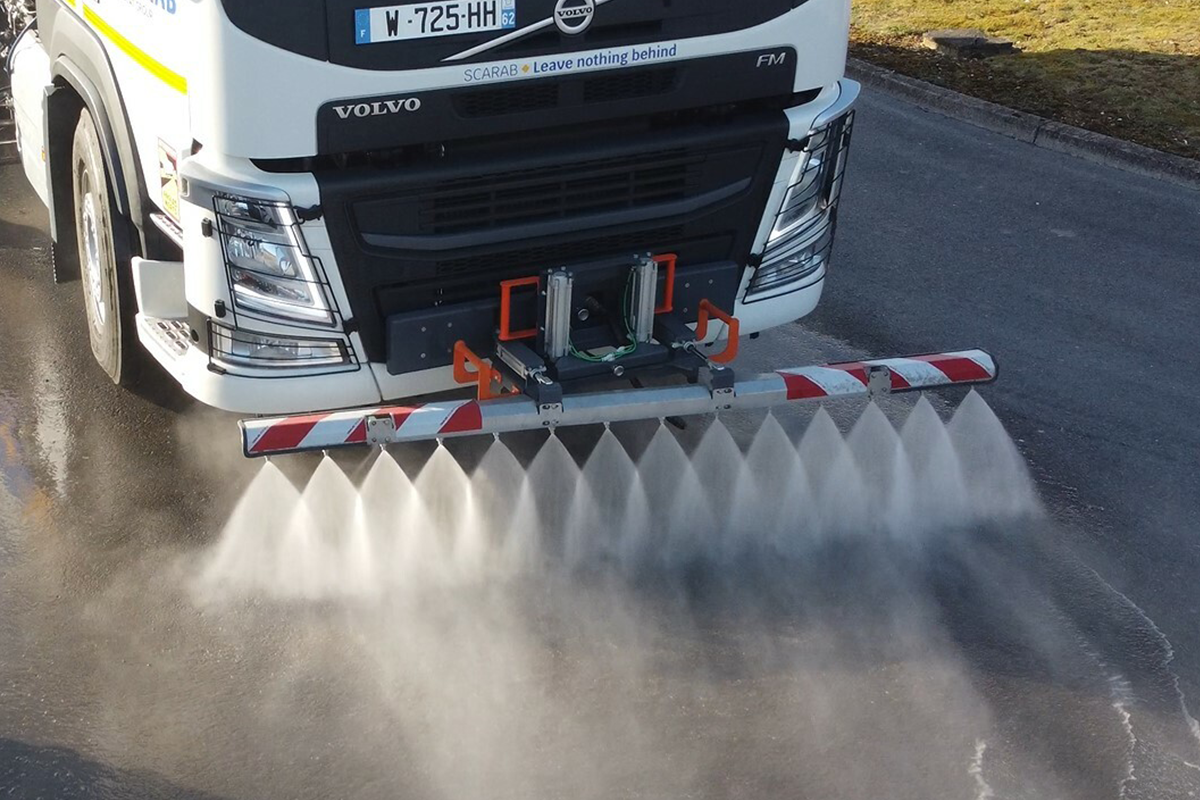

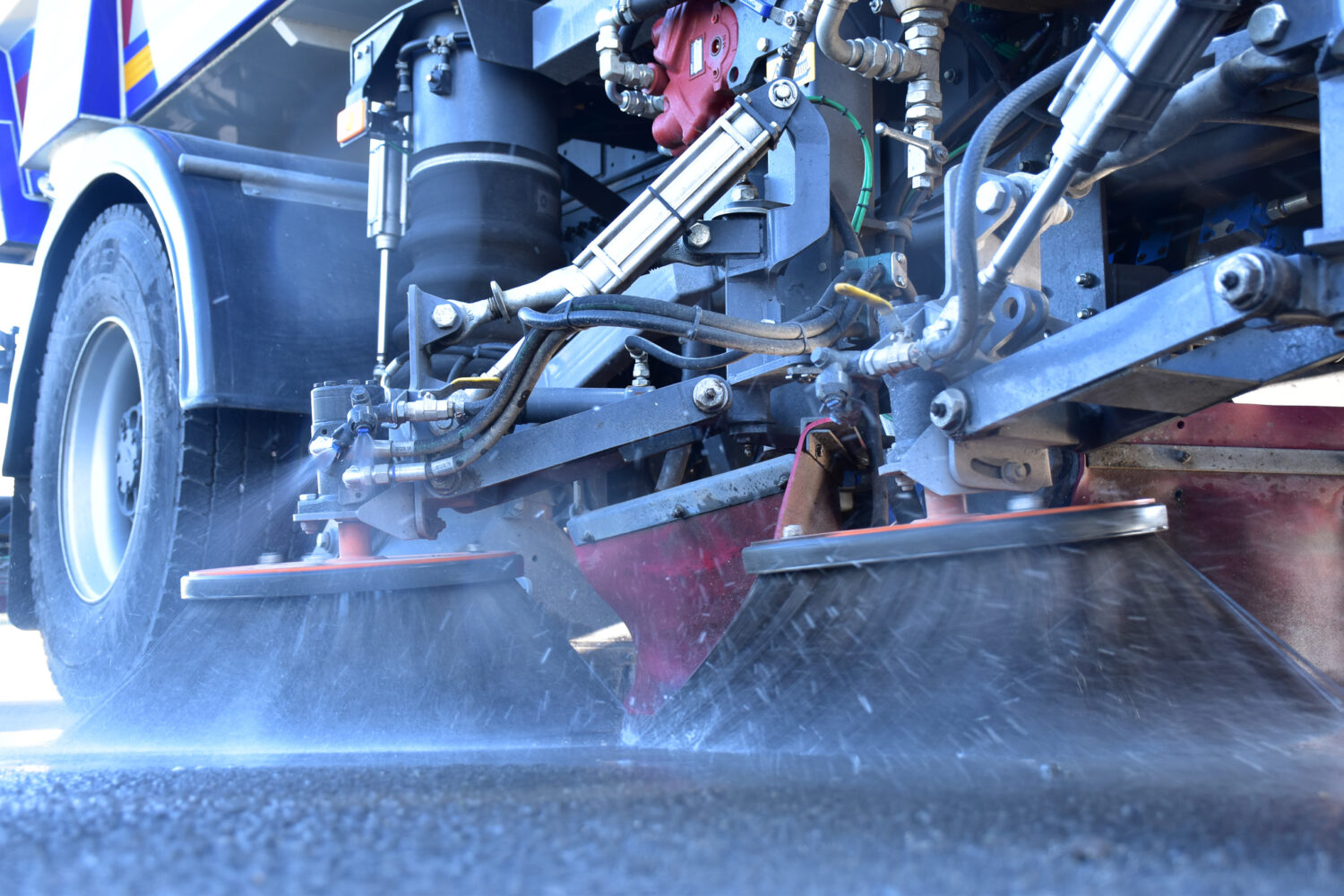

Fully Articulating Spray Bar

Fully Articulating Spray Bar

Our fully adjustable slewing spray bar system, with pneumatic articulation, enables the operator to get full utilisation from a chosen water pump system. These bars can slew left to right depending on the curbside and also lift and lower to allow safer stowage and protection from damage. The spray bar, which is made from stainless steel, features 14 jets for full-width coverage. This configuration also contains a chassis interface plate and quick release couplings to allow for quick and easy removal.

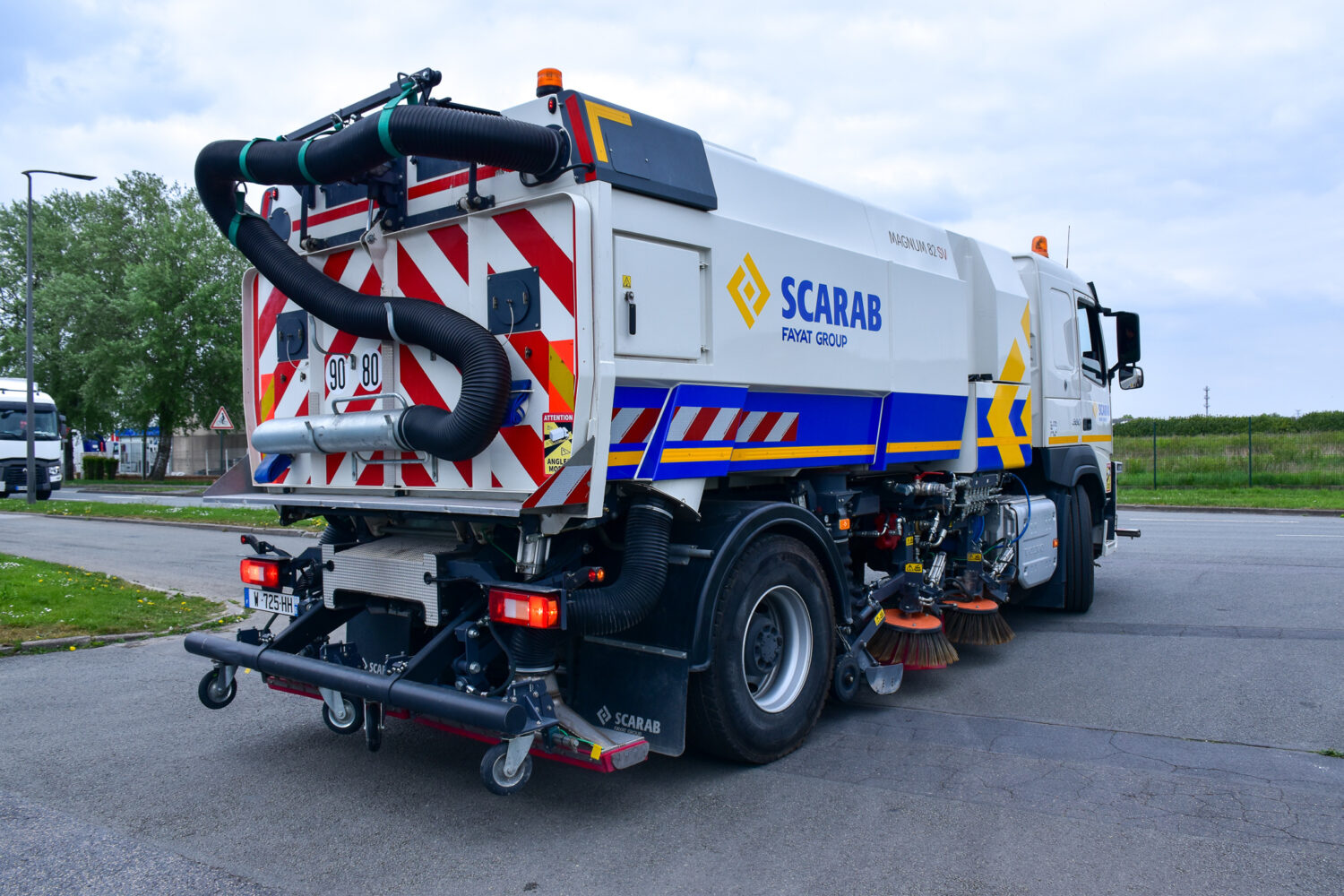

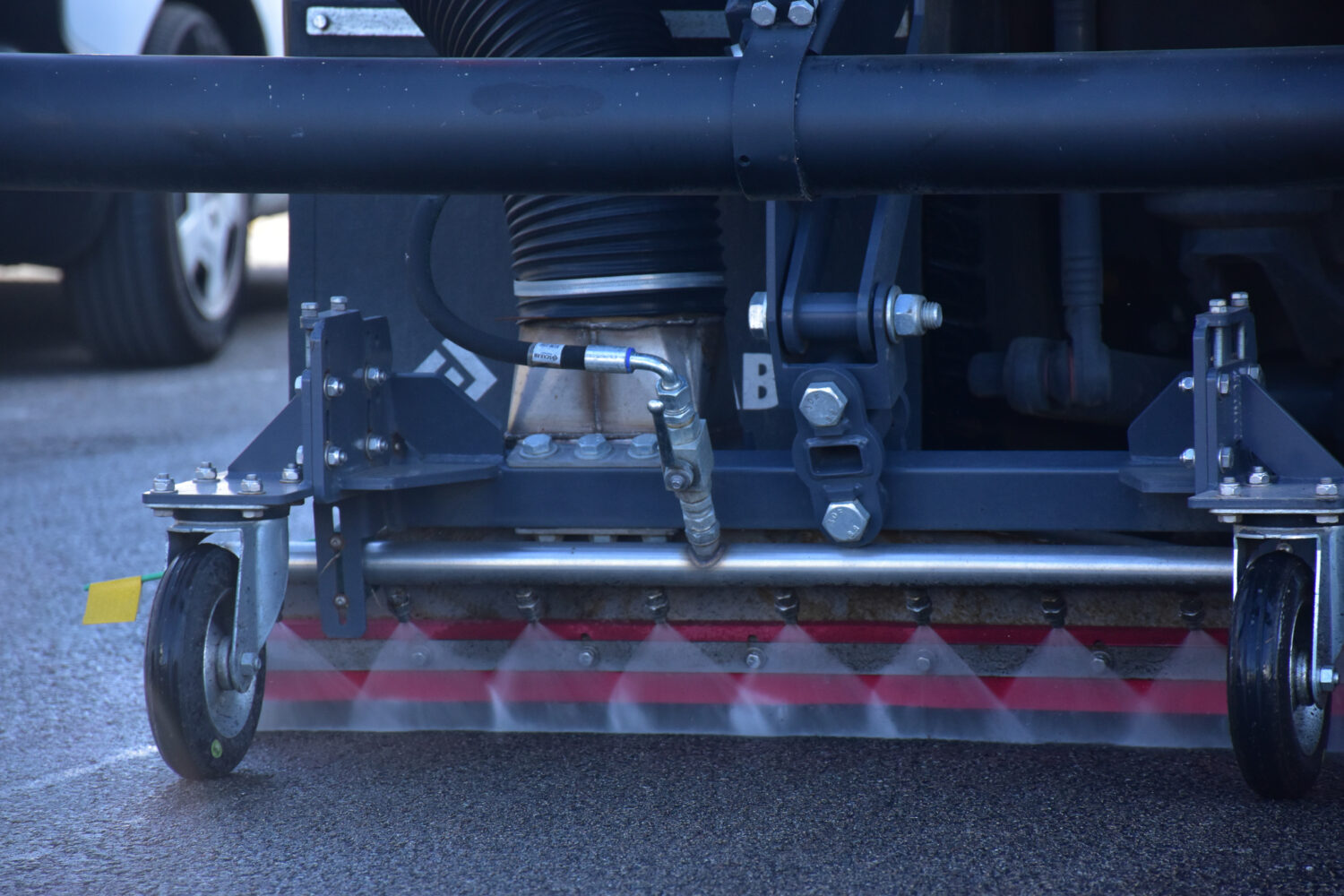

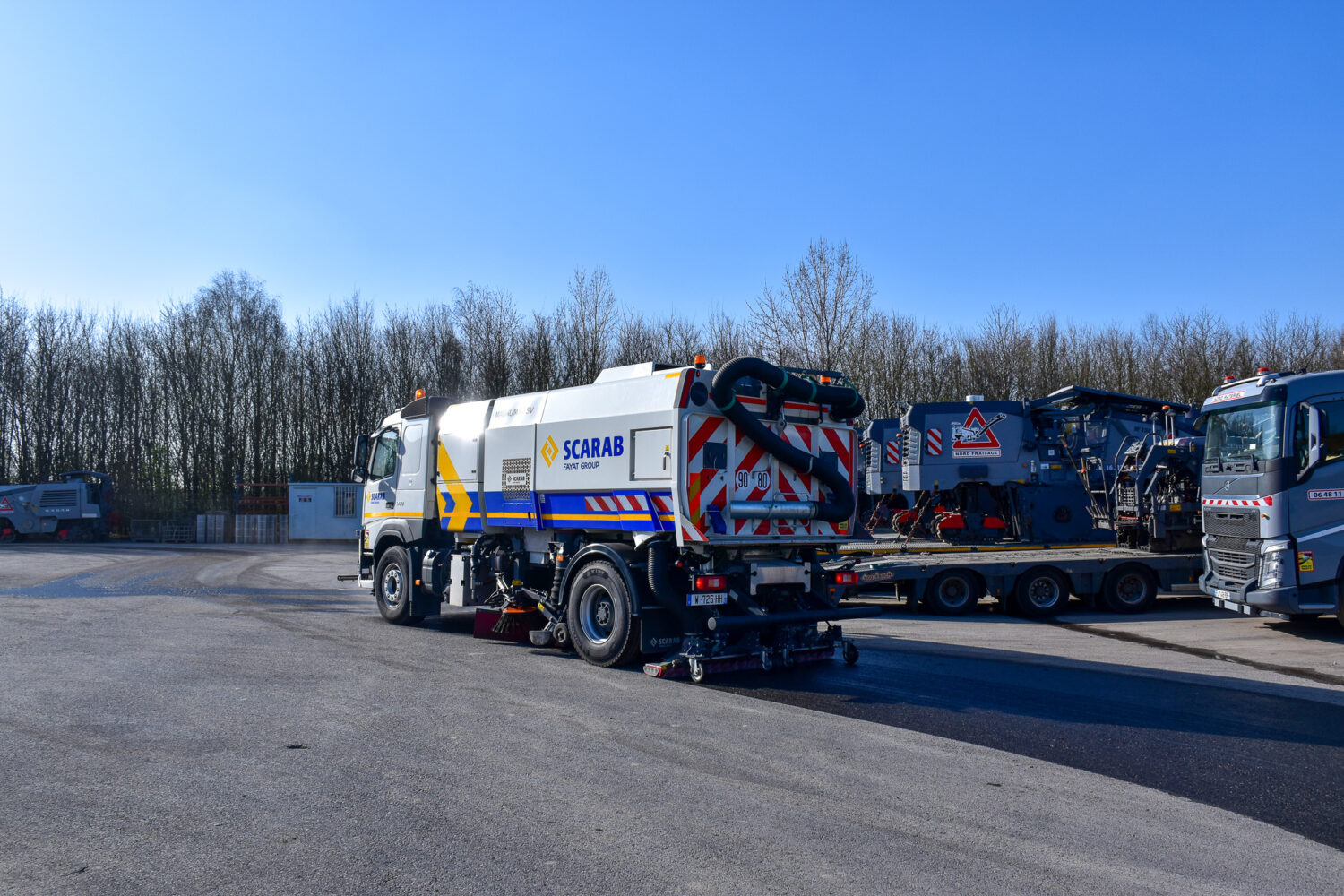

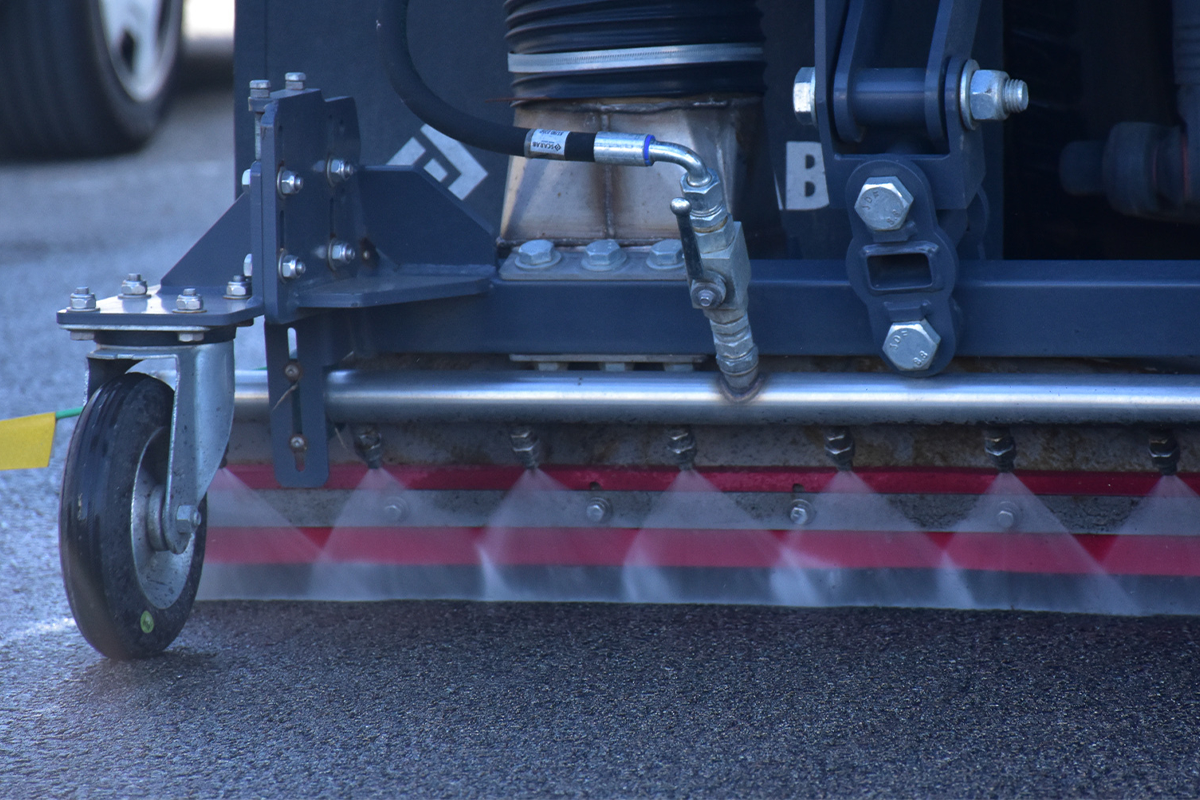

Full-Width Rear Suction

Full-Width Rear Suction

A full-width suction nozzle system is mounted to the rear of the vehicle to provide the minimal possible envelope, while also retaining a full 2.5-metre suction width. By coupling our rear suction option with a high-pressure water system, the machine can provide clean, surface dressed surfaces that are ready for the application of the final wearing course. Additionally, the full-floating nature of our rear suction unit allows for the unpredictability of surface imperfections - it is fitted with a pneumatic system to lift/lower to meet the operatorā€™s needs.

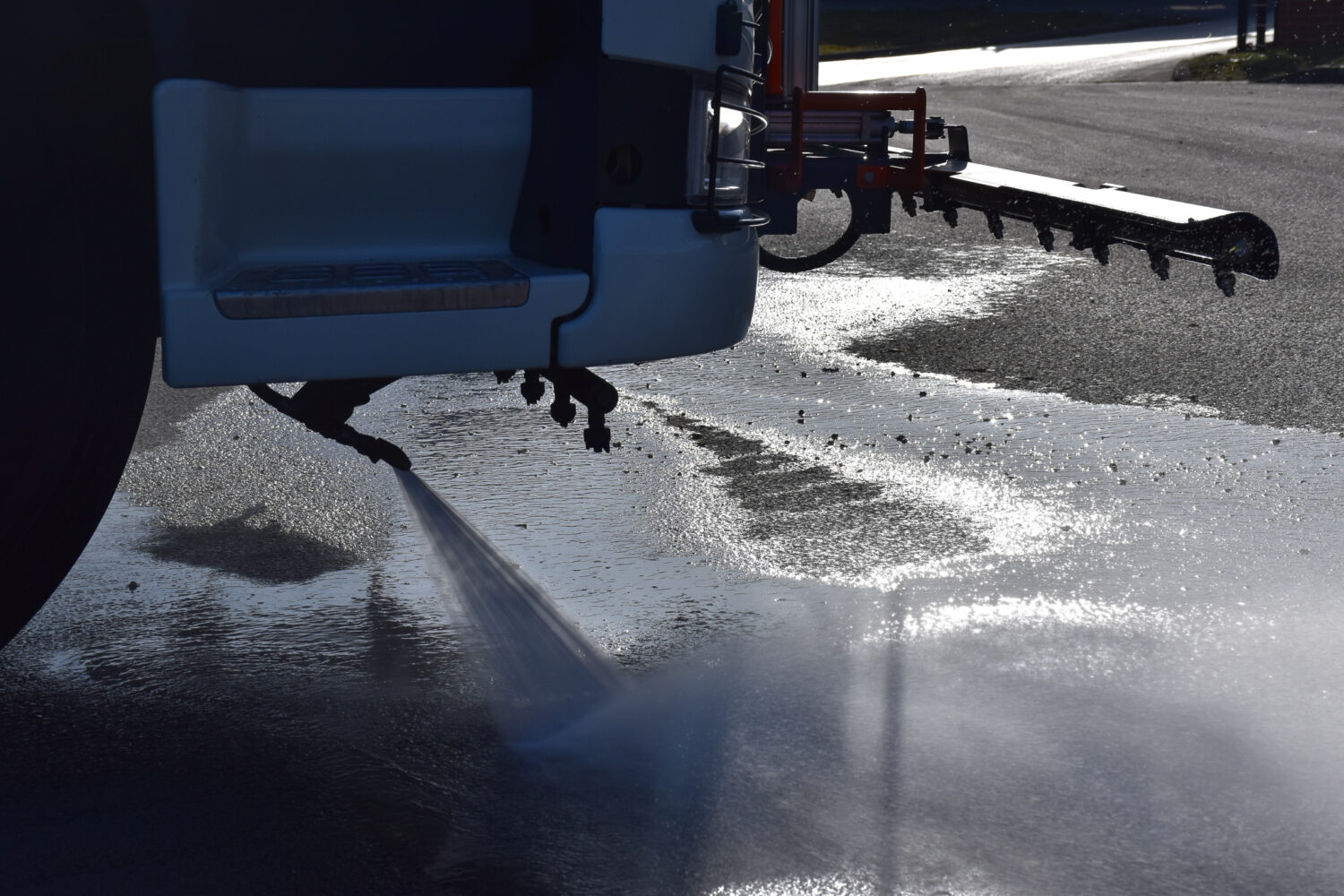

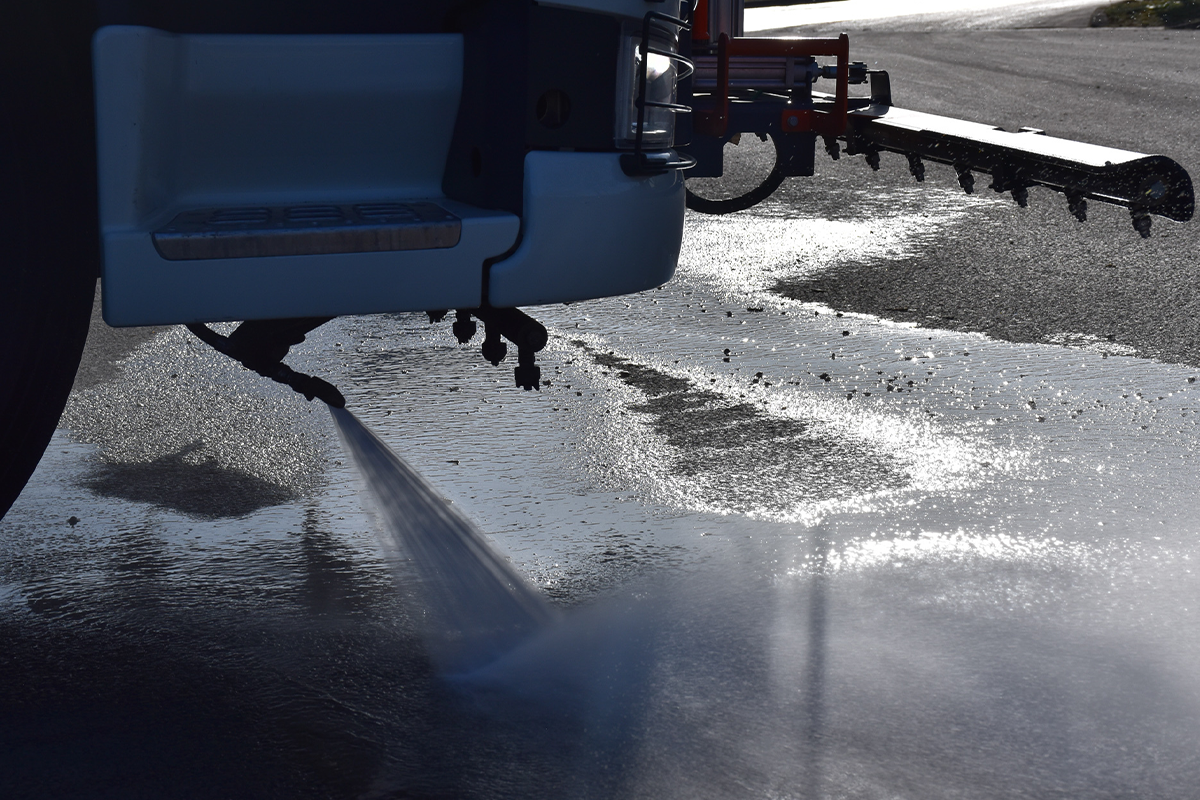

Side Jets

Side Jets

Corner jets can be fitted to the front bumper of the machine - one on each side - to produce a high-pressure water stream to the side of parked vehicles for street flushing. These jets are activated by manual valves.

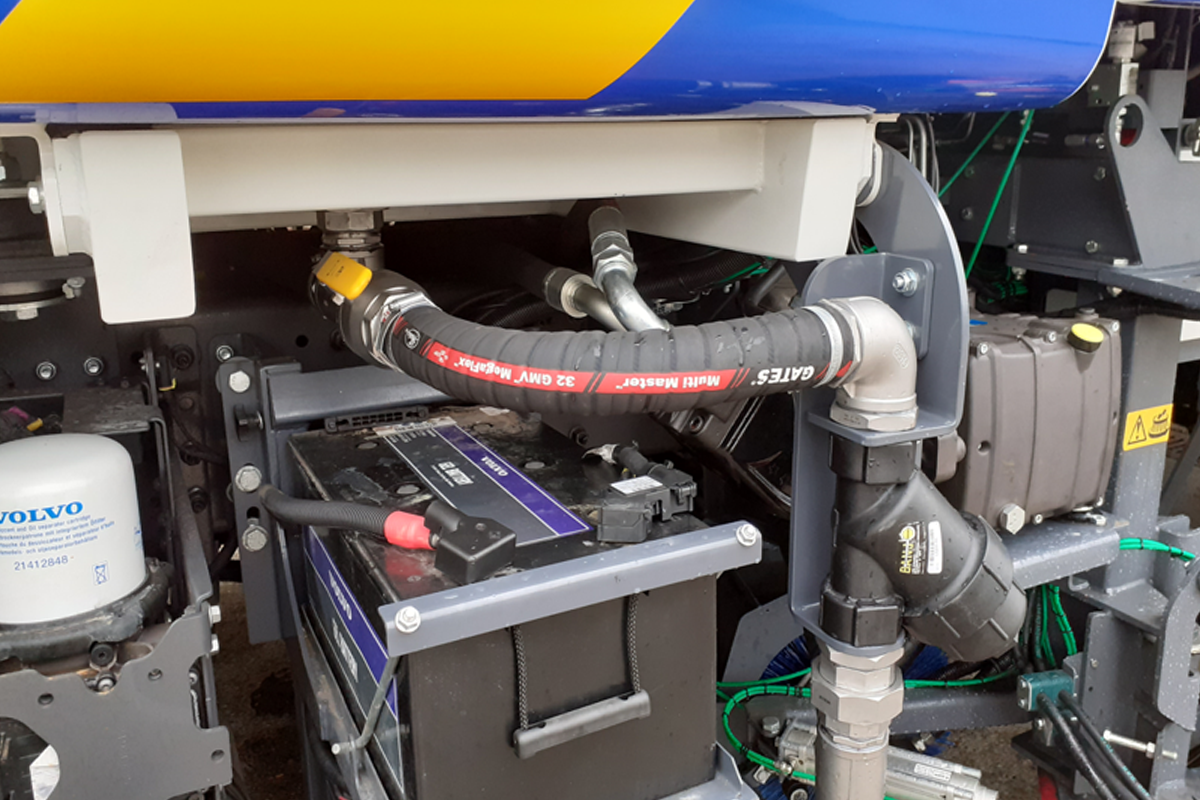

High Pressure Water Pump

High Pressure Water Pump

The Magnum 82 SV's high-pressure water pump can be configured to provide 93 LPM/210 bar or 122 LPM/160 bar. This pump is driven hydraulically by a PTO pump which is electronically controlled to allow for variable control. The machine is also fitted with a hose reel and lance to allow operators to get the most out of the machine.

Next Generation Control

Scarab's next-generation CANbus control system is fitted as standard to the Magnum 82 SV. This system comes equipped with a fully touchscreen main control panel and a multi-function door pod.

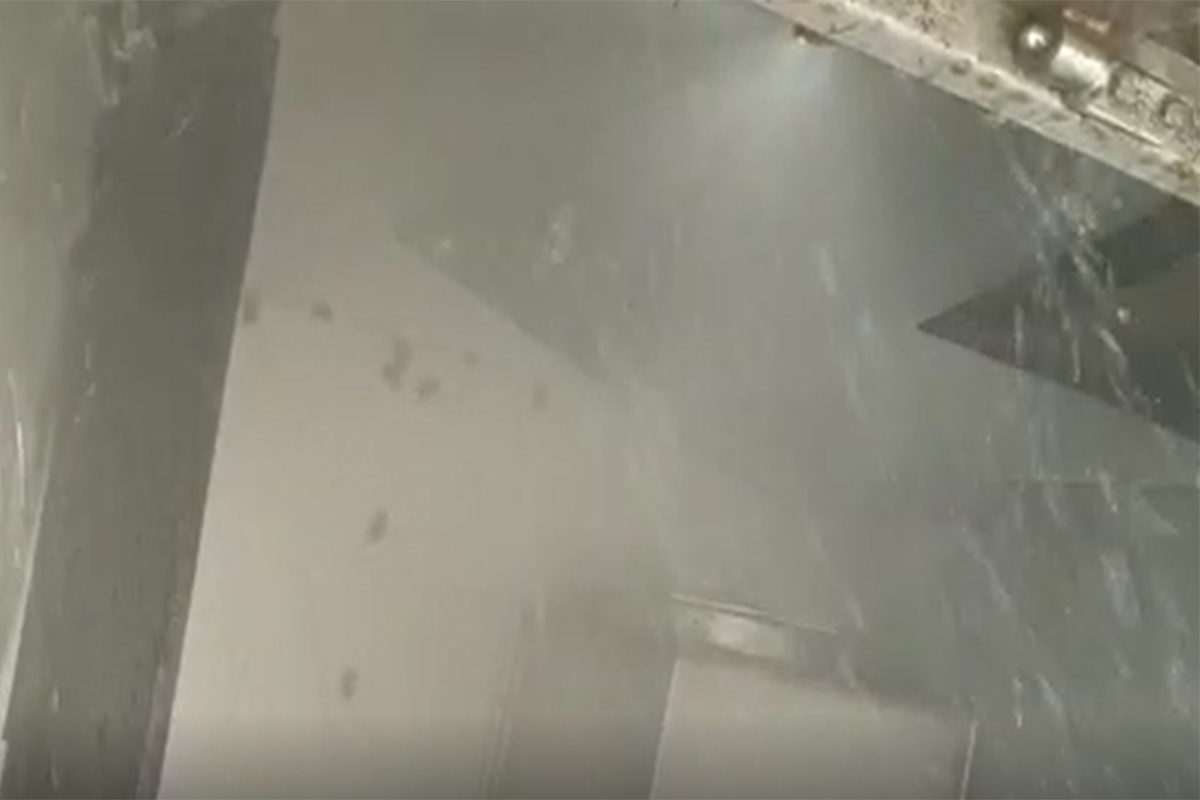

Hopper Wash

Hopper Wash

By selecting the SV's hopper wash option, the machine is fitted with high pressure full-cone jests inside the hopper to deluge the waste area and aid cleaning and discharge.

Discuss your needs

For more information on our range of Specialist Vehicle options, or to discuss chassis suitability, please contact an expert member of the Scarab sales team.
